1 5

Ambient

Ambient

3528-WW-60-24v

Color

Ambient standard old school chip, low wattage with Lumens at 74.43lm/w

Features:

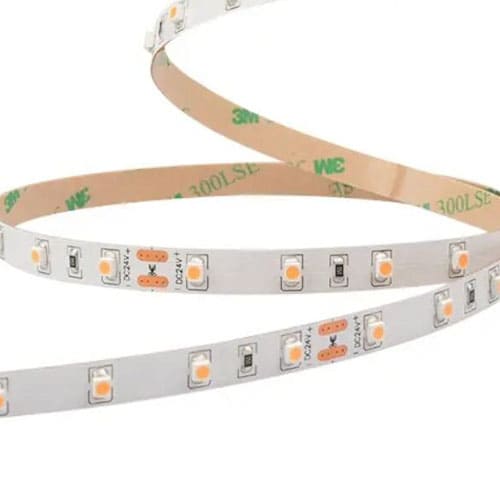

  • LED SMD Type 3528
  • Lifetime: 50,000hours.
  • Dimmable by controller or sensor switch.
  • Operation temperature: -20-50℃
  • Led lighting angle: 120°
  • CRI: >90

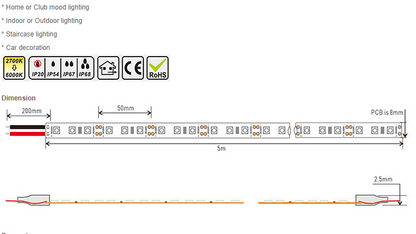

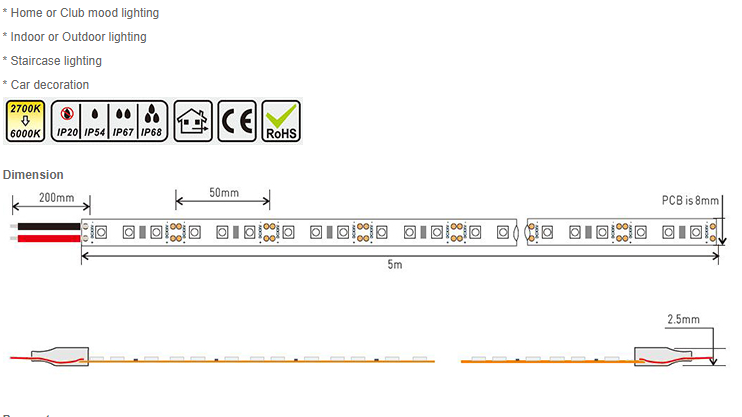

  • Size: W8 x H3mm
  • 3m Adhesive tape
  • Voltage: 24v
  • Power P/M: 4.8w
  • LEDs P/M: 60SMD
  • Cut Every (LED): 6
  • Waterproof rating IP20
  • Colour temperature options 3000K, 4000K, 6000K







Materials and care

Materials and care

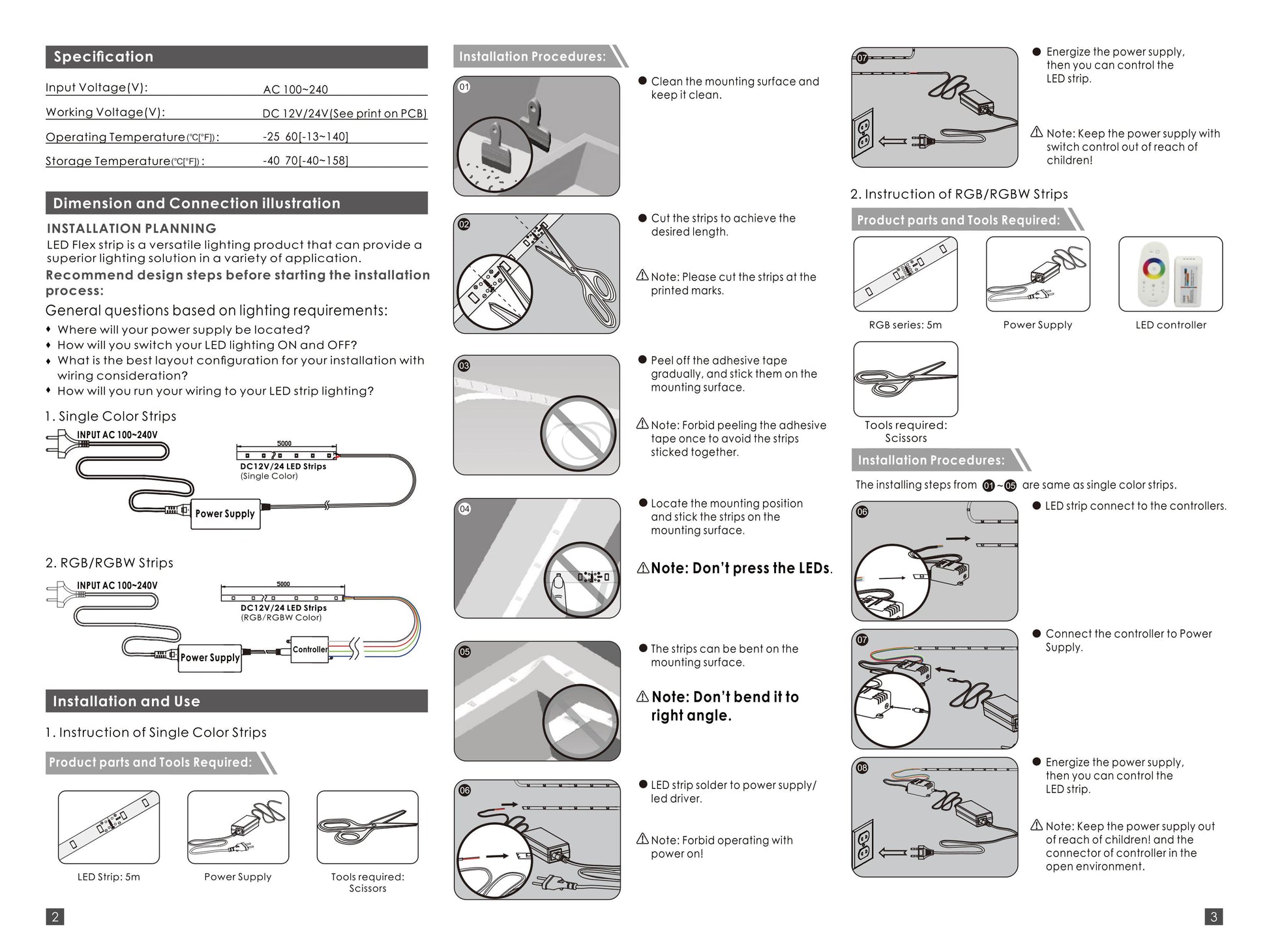

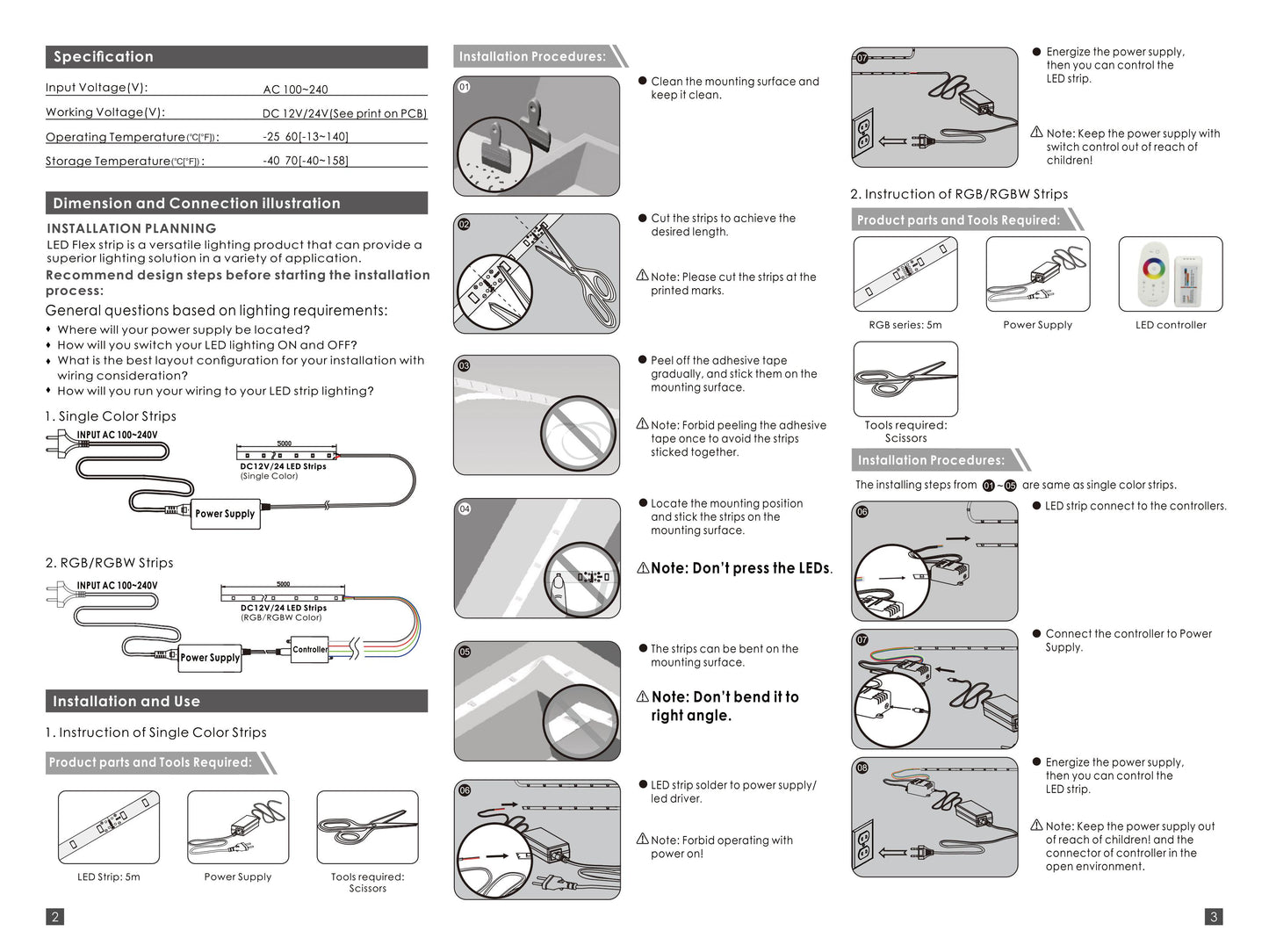

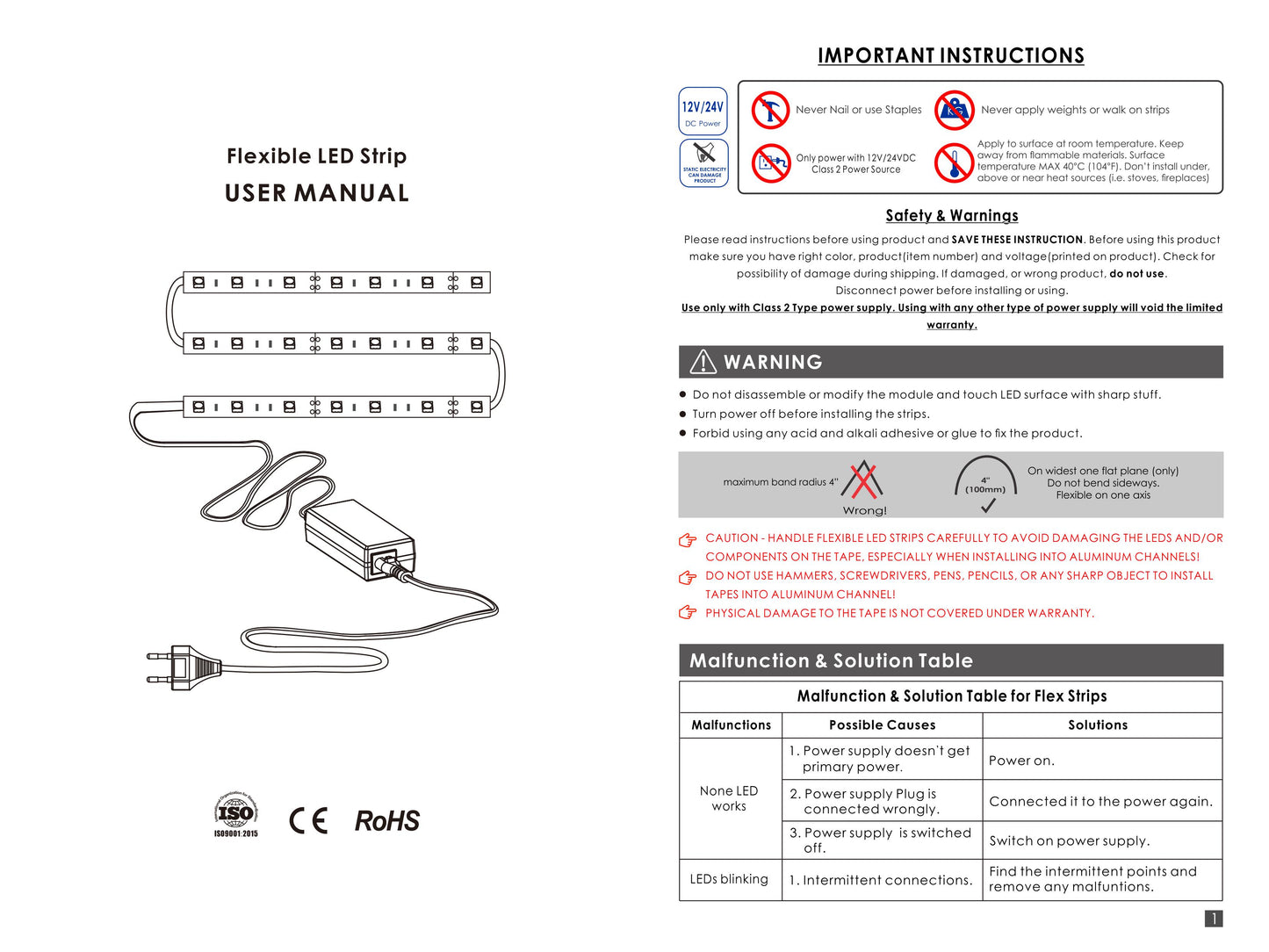

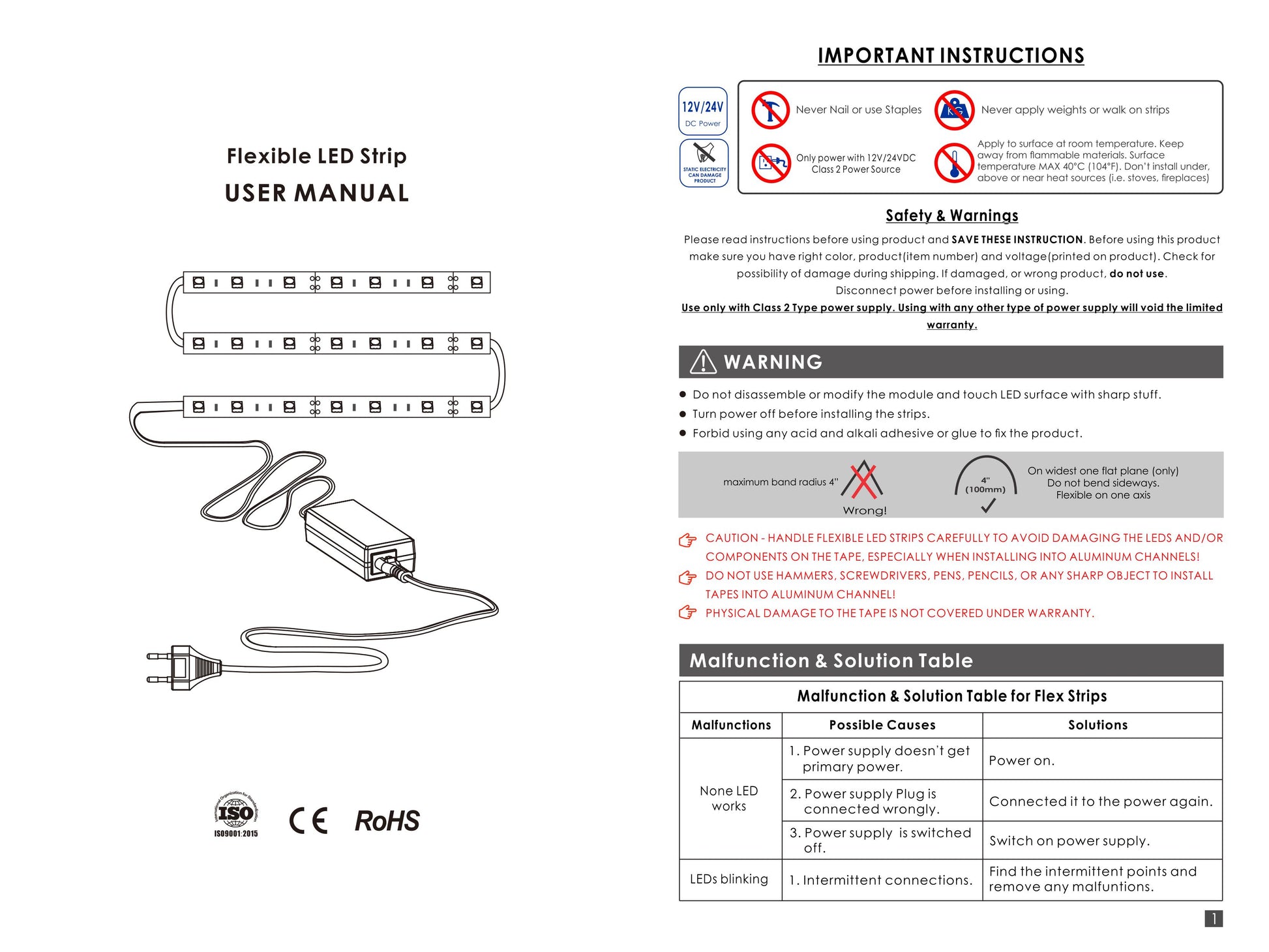

1. All TGTECH LEDS are tested and checked prior to dispatch, however always double check and test on site prior to installation.
2. LED ribbon is fragile, take care during transport and installation to avoid failure. If flexible LED ribbon not handled with care on installation the solder joints between sections can be compromised and cause immediate or prolonged failure.
3. Do not shake out the roll to straighten, bend excessively or stand on, long lengths should be handled by two persons while installing. Bending or shaping beyond format supplied is to be avoided at all times.
Note: once product has been secured using the supplied adhesive tape it cannot be removed without causing irreversible damage to the LED ribbon.
Do not remove protective backing until certain installation is final.
