FT2835 – Single Colour Flex Tile
FT2835 – Single Colour Flex Tile
SKU:FT2835-NW-288-24V-1
Flex Tile – F2835 Single Colour.
Natural White (4000K), 288 LEDs per tile, 24 Volt, 10 watts per tile

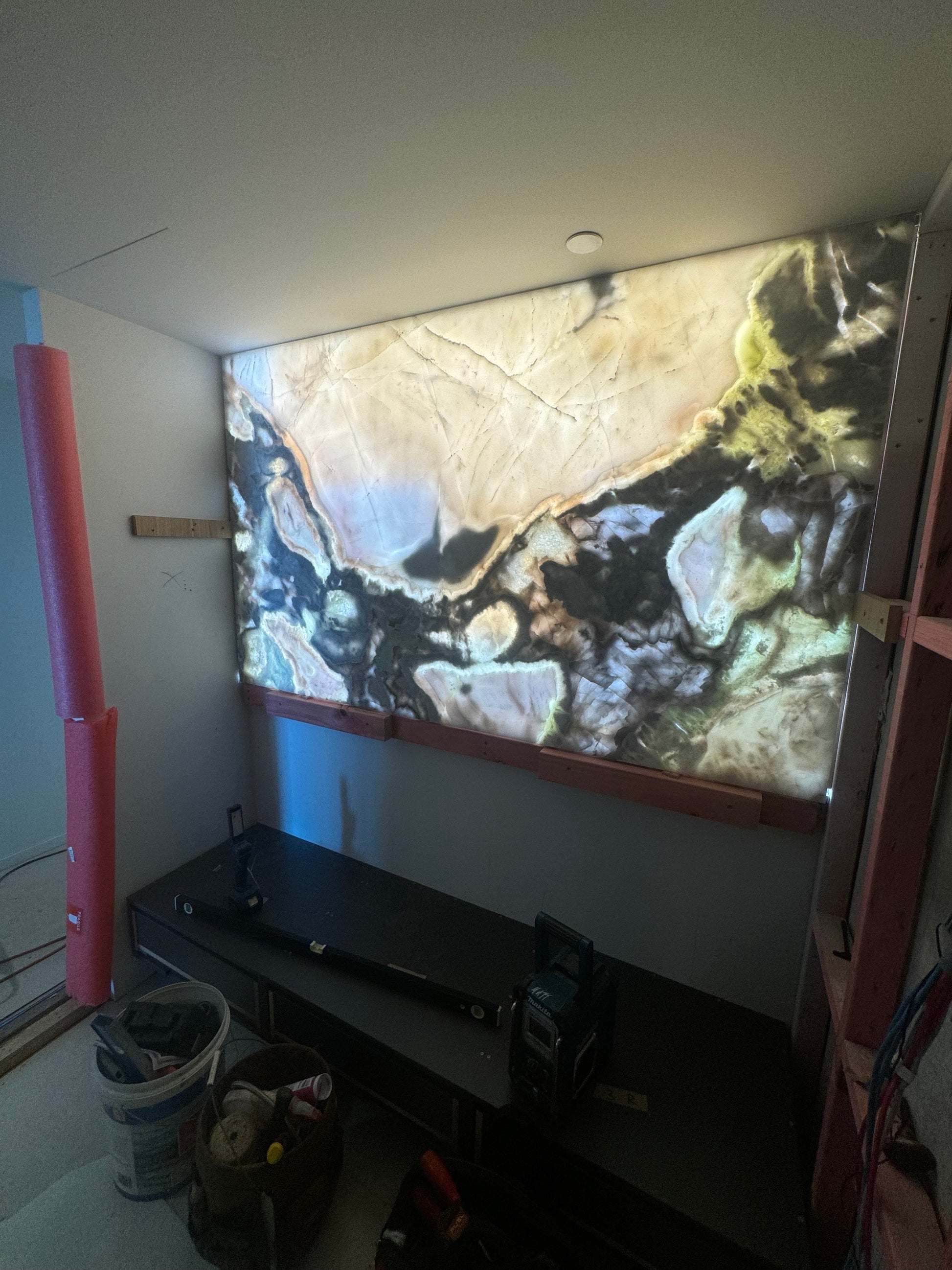

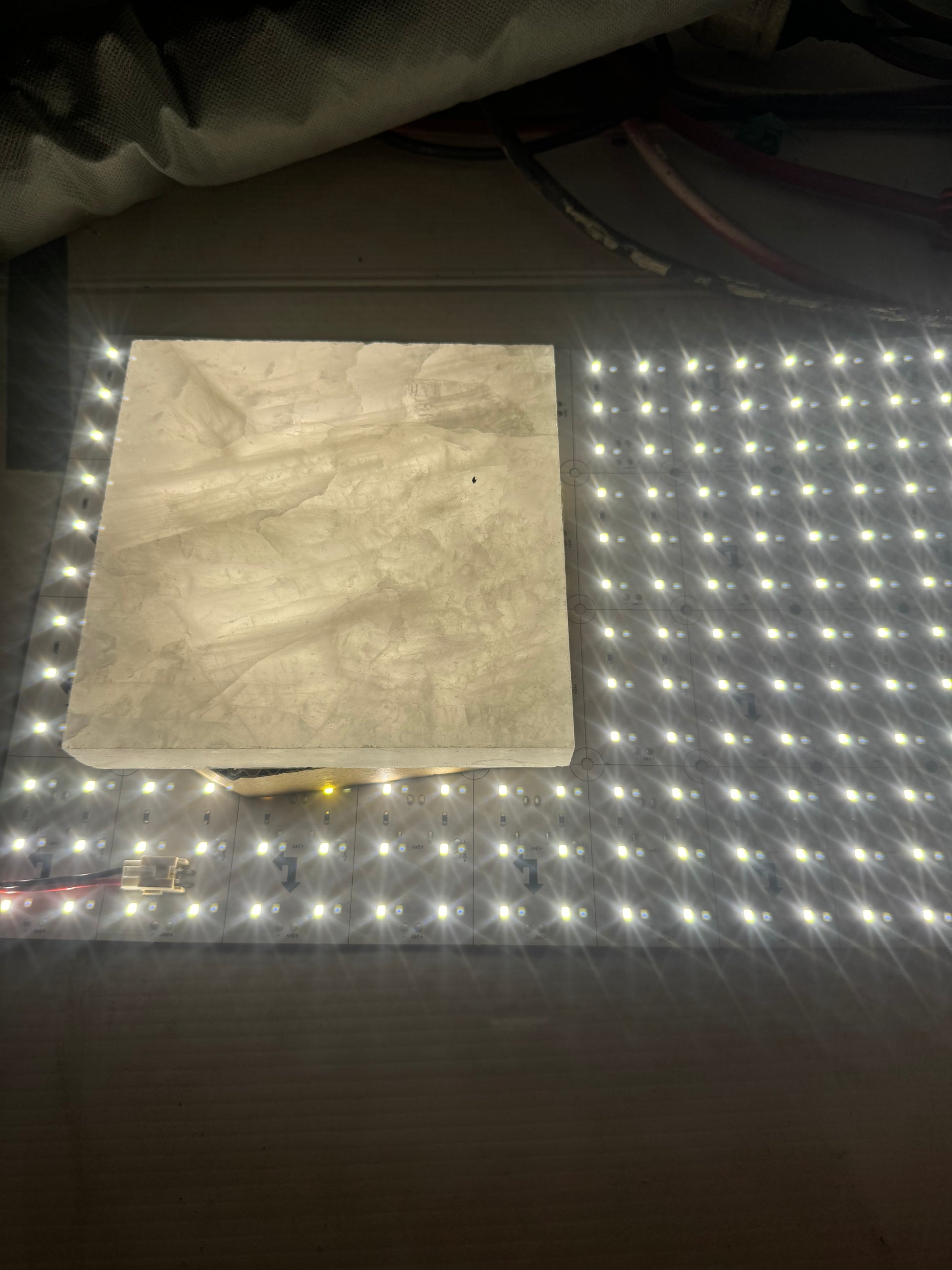

Modular LED tile panels ideal for backlighting, producing a high quality, uniform light source.
High LED density allowing for close placement of materials, reducing spacing and potential hotspots. Recommended space 40mm.
Flexibility allows for use on curved applications.
Tile panels can be cut to shape and joined easily with connectors.
3M double sided self-adhesive backing allows for easy installation on flat or curved surfaces and can also be screw fixed through the marked circular areas between the cuttable sections.

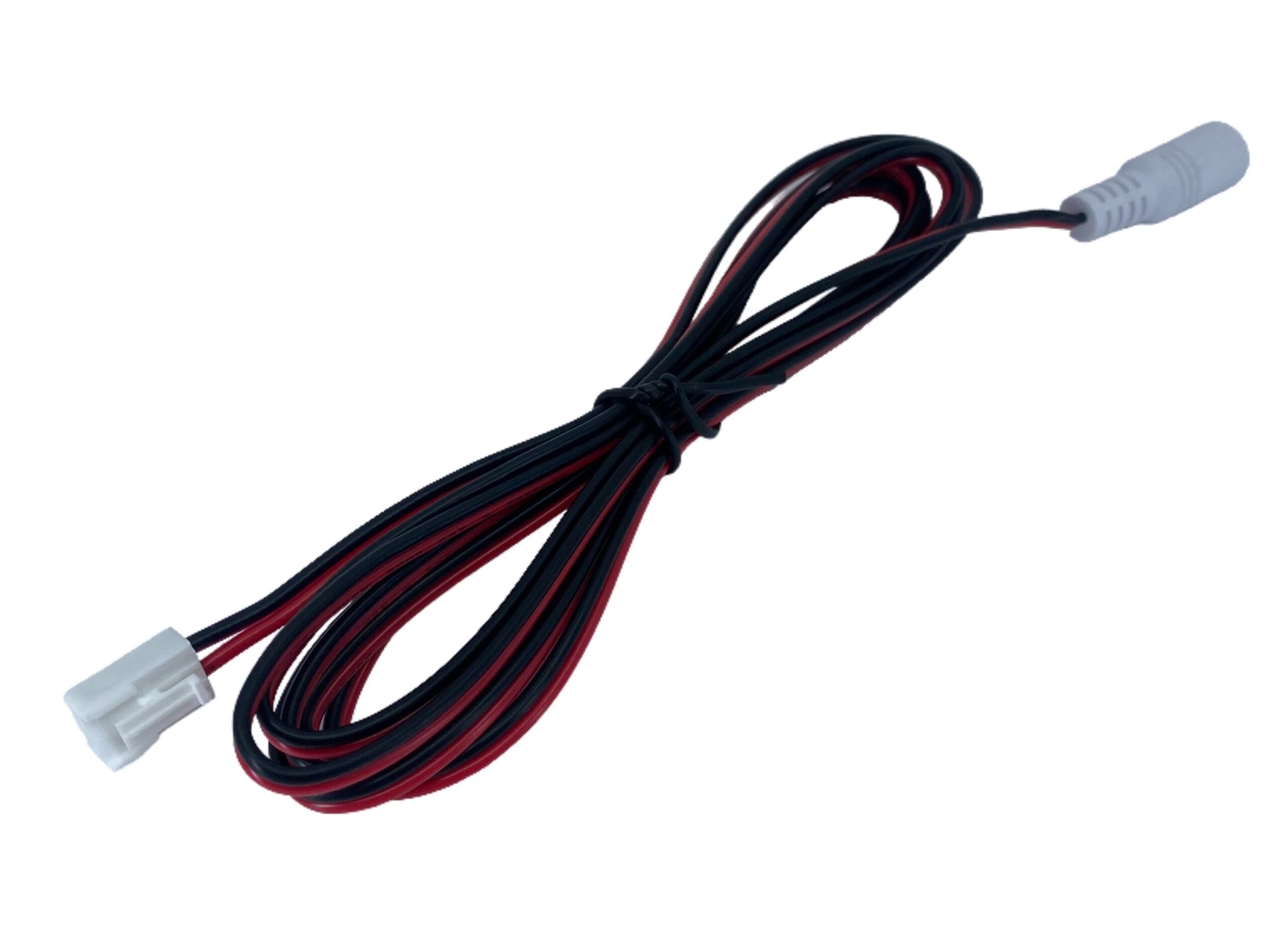

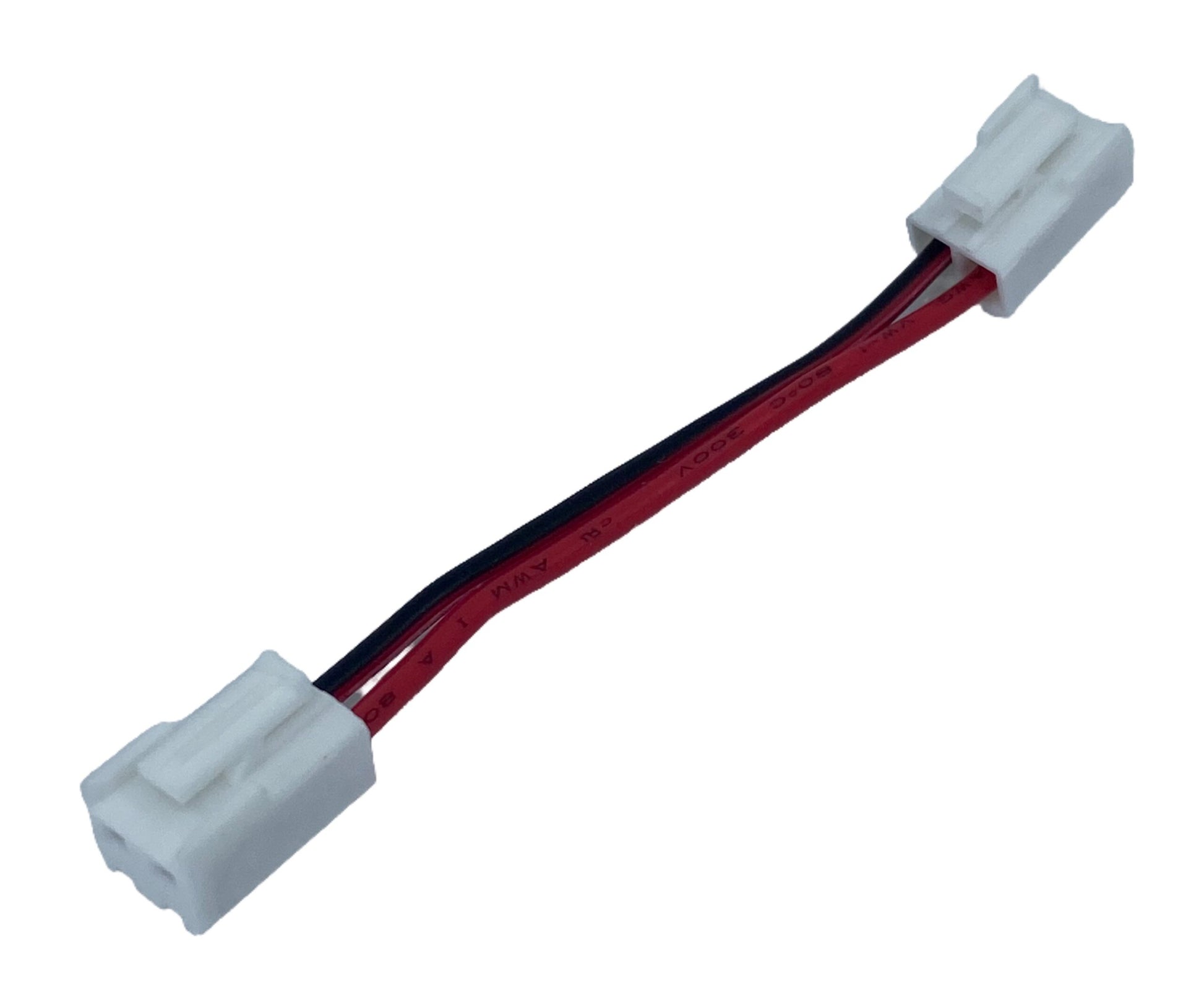

These tiles, they recommend 10 tiles per circuit. So, for every 10, one power cable to power supply, and 9 connector cables to go from one tile to the next
Natural White (4000K)
24 Volt.
10 Watts/tile.

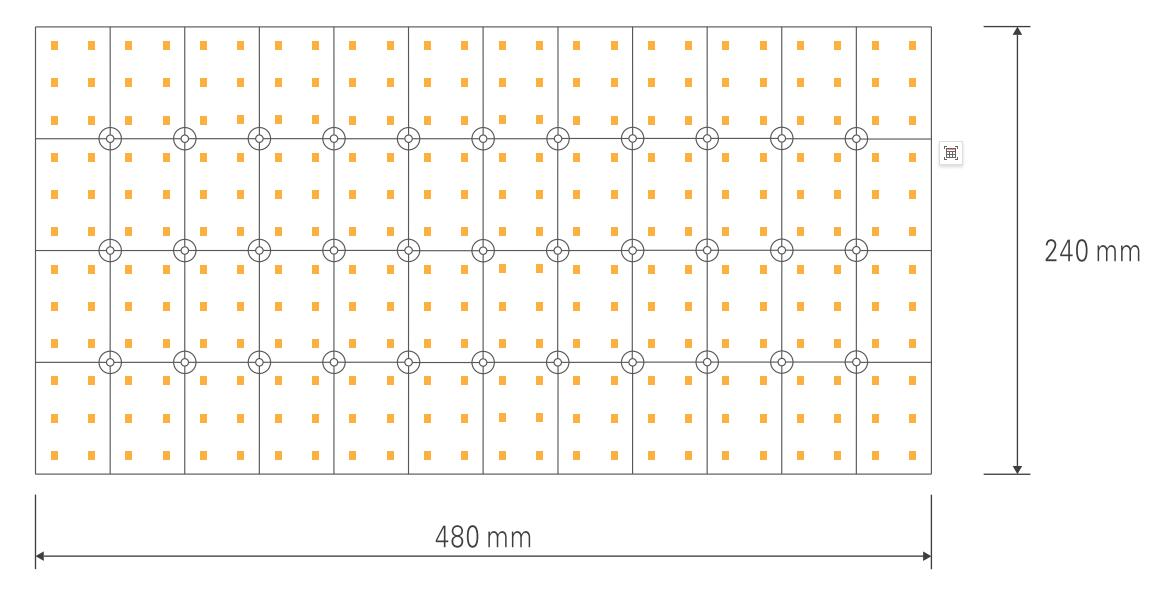

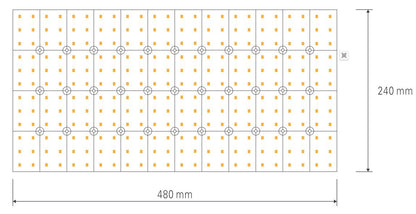

Tile size: 480mm x 240mm x 1.4mm
- LED type: 2835.
- LED colour: Natural white (4000K).
- Tile panel size: 480mm x 240mm x 1.4mm.
- 288 LEDs per tile.
- 10 watts per tile.
- Cuttable section size: 40mm x 60mm.
- Maximum connection: 10 tiles per circuit.
- CRI 90.
- LED beam angle 120°.
- Long life span LED light, more than 50,000 hours+.
- Operating temperature: -20-50°C.
- Switchable and/or dimmable by using single colour controller, sensor switch or Wi-Fi.
- 3M adhesive tape.
- IP20, non-waterproof.
Materials and care
Materials and care
Materials and care
1. All TGTECH LEDS are tested and checked prior to dispatch, however always double check and test on site prior to installation.
2. LED ribbon is fragile, take care during transport and installation to avoid failure. If flexible LED ribbon not handled with care on installation the solder joints between sections can be compromised and cause immediate or prolonged failure.
3. Do not shake out the roll to straighten, bend excessively or stand on, long lengths should be handled by two persons while installing. Bending or shaping beyond format supplied is to be avoided at all times.
Note: once product has been secured using the supplied adhesive tape it cannot be removed without causing irreversible damage to the LED ribbon.
Do not remove protective backing until certain installation is final.
