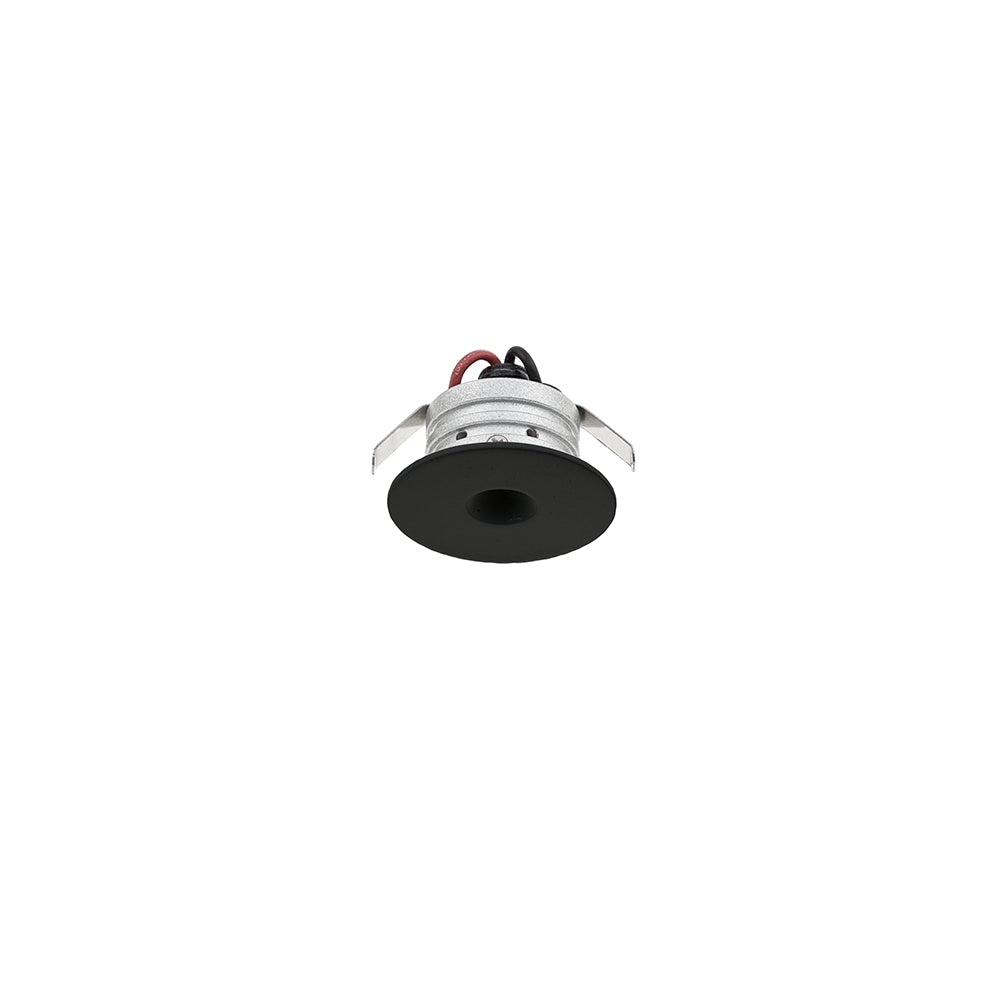

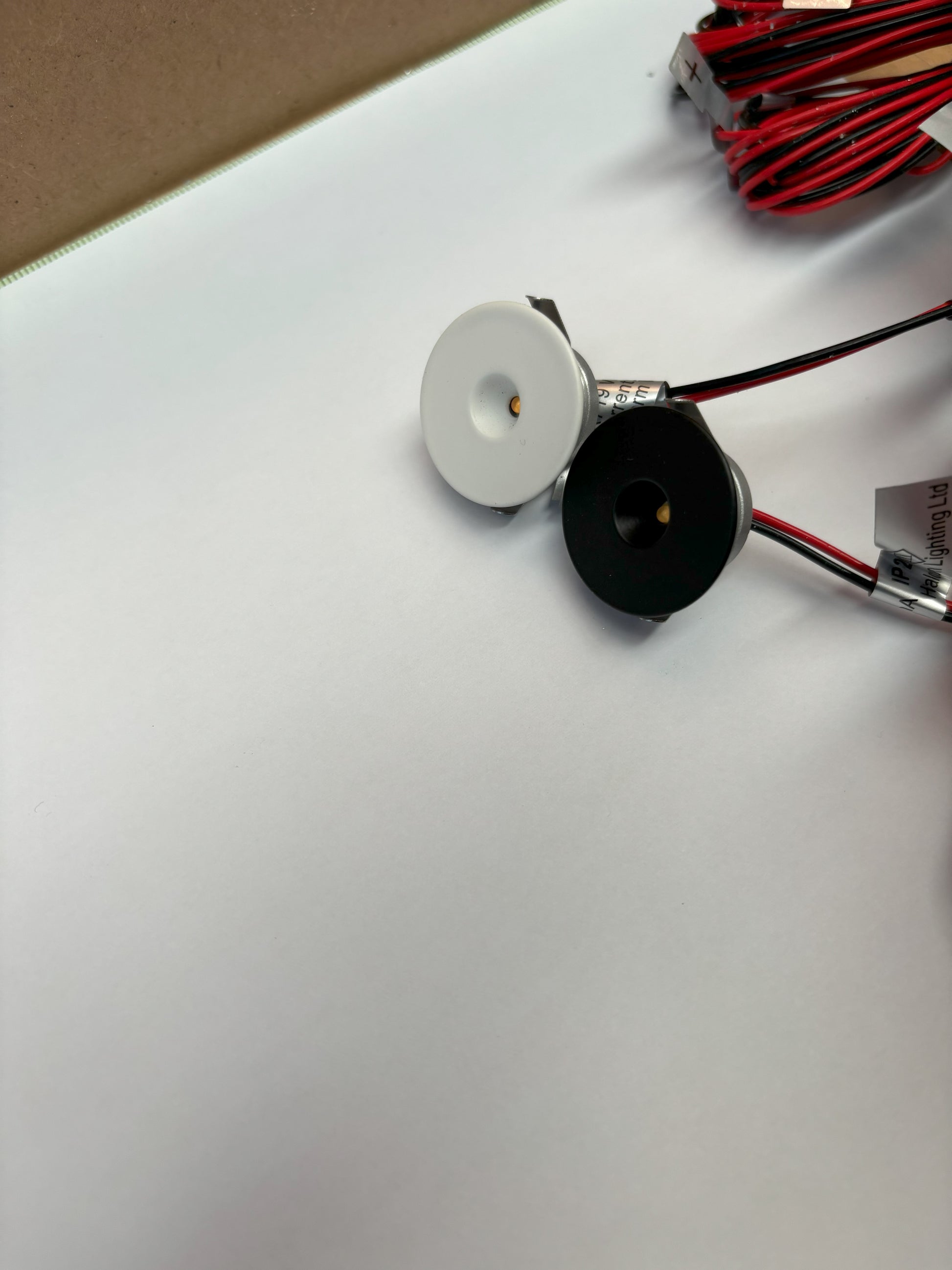

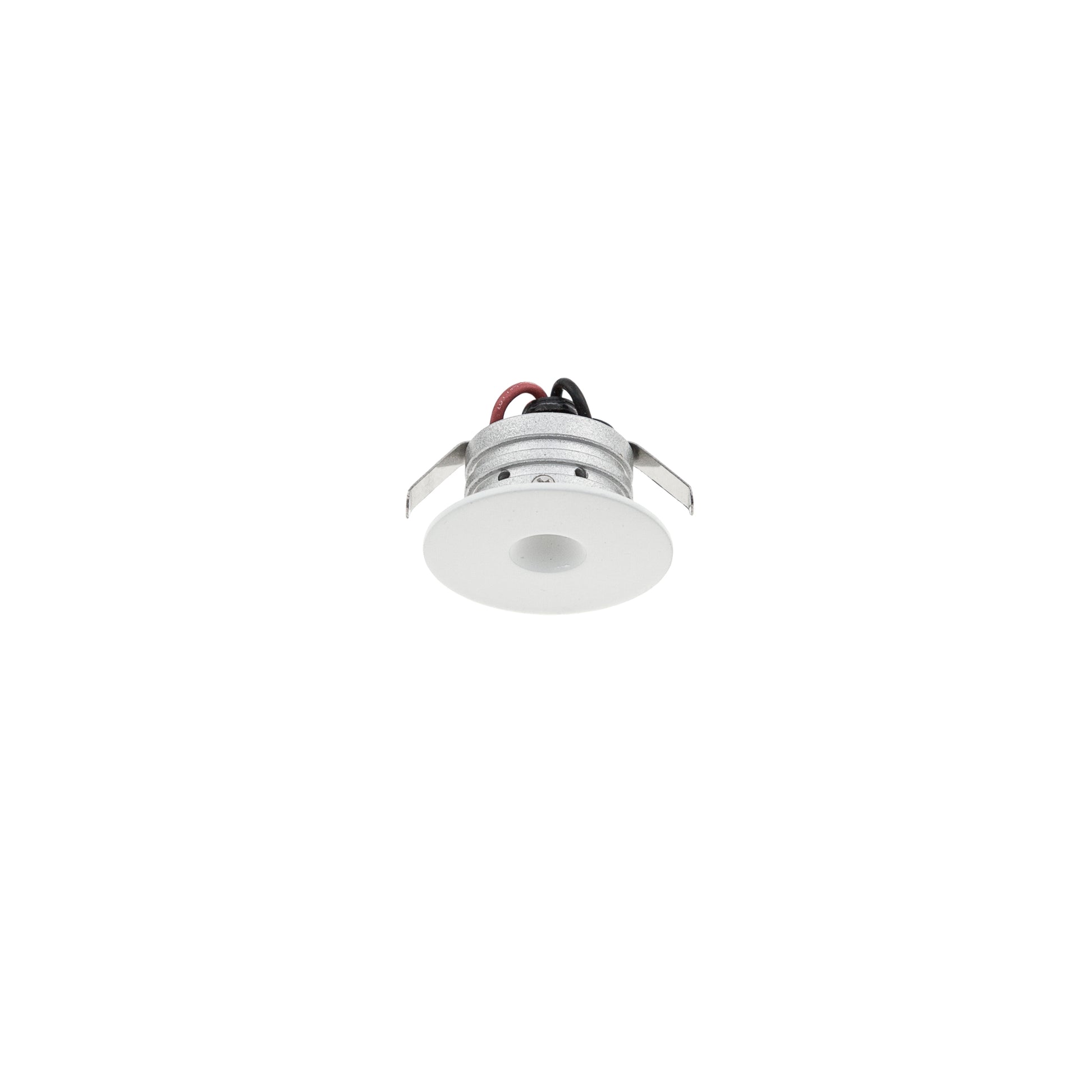

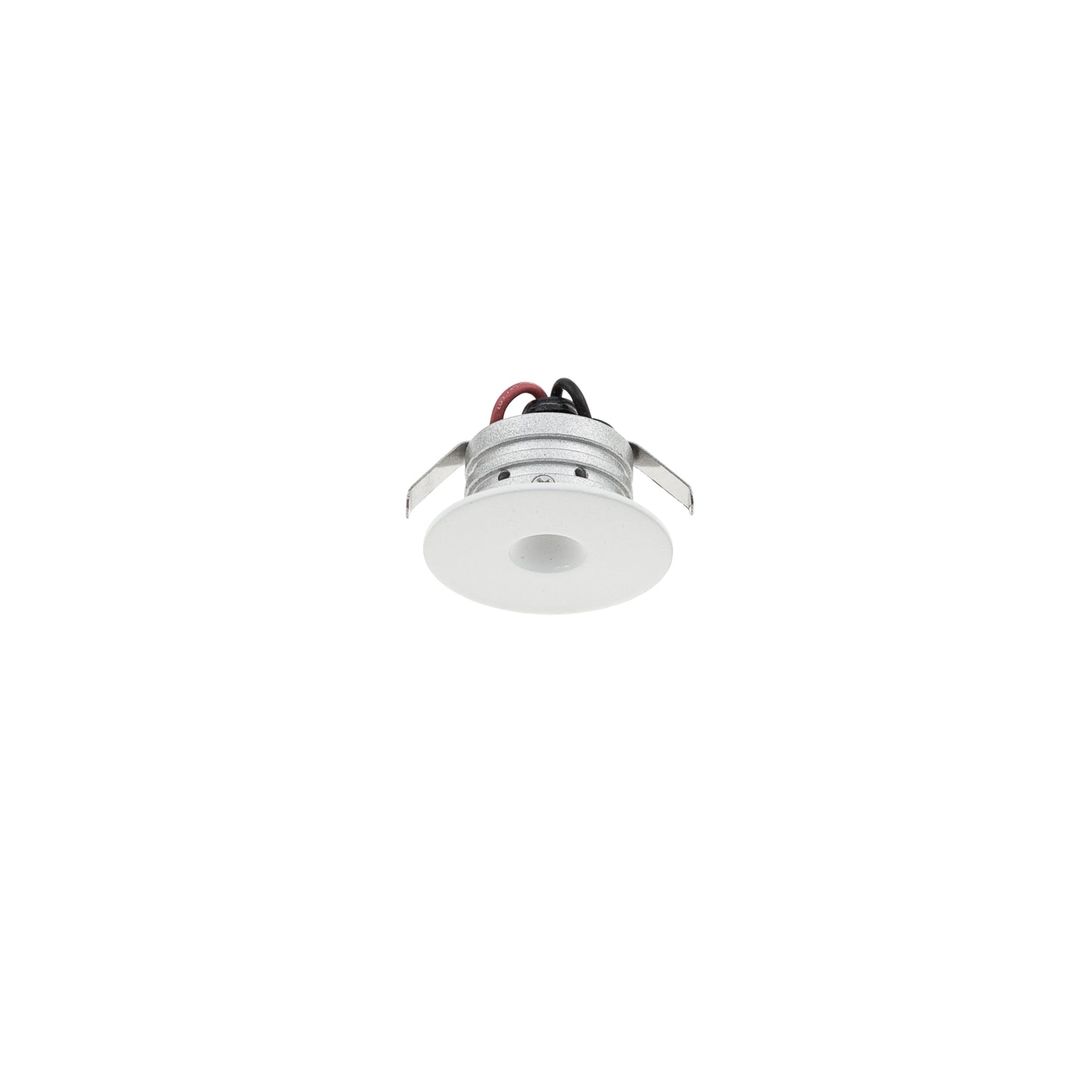

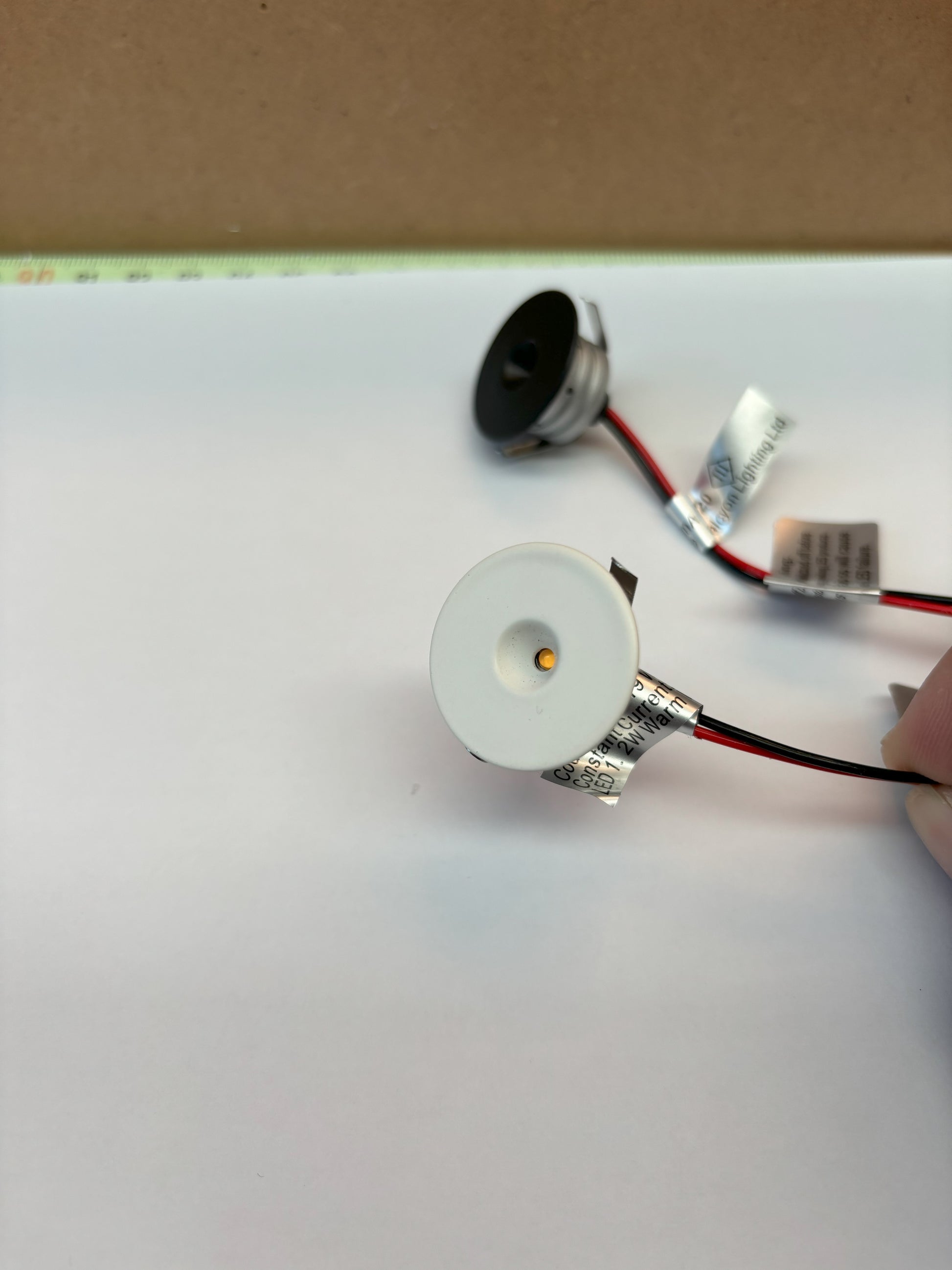

Mini DL cabinet light
Mini DL cabinet light
SKU:R719-WL
Features:
- Watts: 1.2w
- Cut out: 20mm
- Diameter: 25mm
- Product height: 15mm
- Colour temperature: 3000k
- Lumen: 75lm
- CRI: 80
- Lifespan: > 42,000 hr L70
- Beam angle: 60°
- Finishes: White, Black
- Material: Aluminium
- Classification: IC
- Dimmable: yes
- DRIVER: DM350-4W IP65 350mA 4W Mini Non-Dimmable Constant Current X 4 DL
- Class: CLASS III
- Warranty: 5 Years
Power supply sold separately Constant current drivers
For more information, PDF attached.
Materials and care
Materials and care
Materials and care
1. All TGTECH LEDS are tested and checked prior to dispatch, however always double check and test on site prior to installation.
2. LED ribbon is fragile, take care during transport and installation to avoid failure. If flexible LED ribbon not handled with care on installation the solder joints between sections can be compromised and cause immediate or prolonged failure.
3. Do not shake out the roll to straighten, bend excessively or stand on, long lengths should be handled by two persons while installing. Bending or shaping beyond format supplied is to be avoided at all times.
Note: once product has been secured using the supplied adhesive tape it cannot be removed without causing irreversible damage to the LED ribbon.
Do not remove protective backing until certain installation is final.
