PIR Sensor
PIR Sensor
SKU:PIR-Sensor
Sensor Switch – PIR.
PIR IR sensor switch (Human body detection sensor).
When person is in detection range, light turns on. Once person leaves detection range, after 40 seconds light turns off.

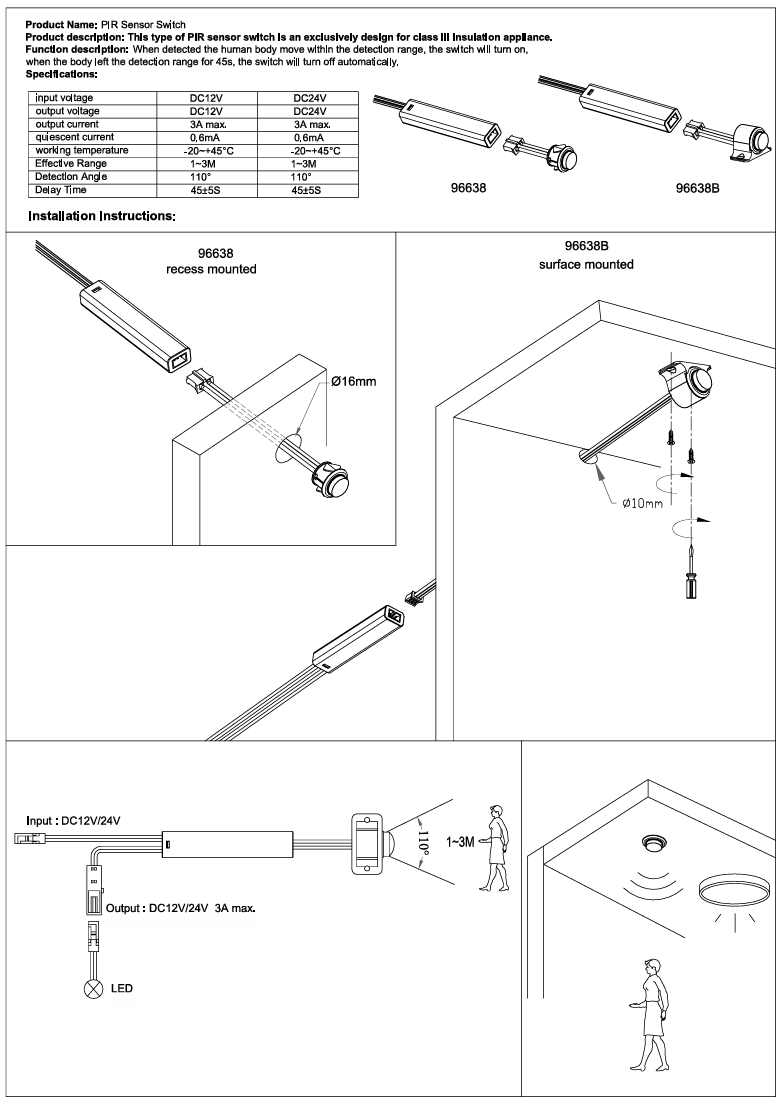

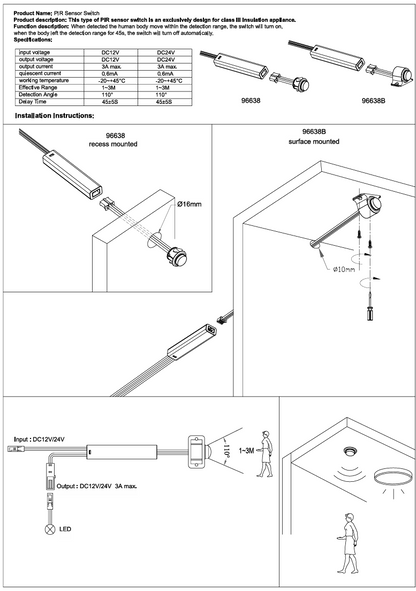

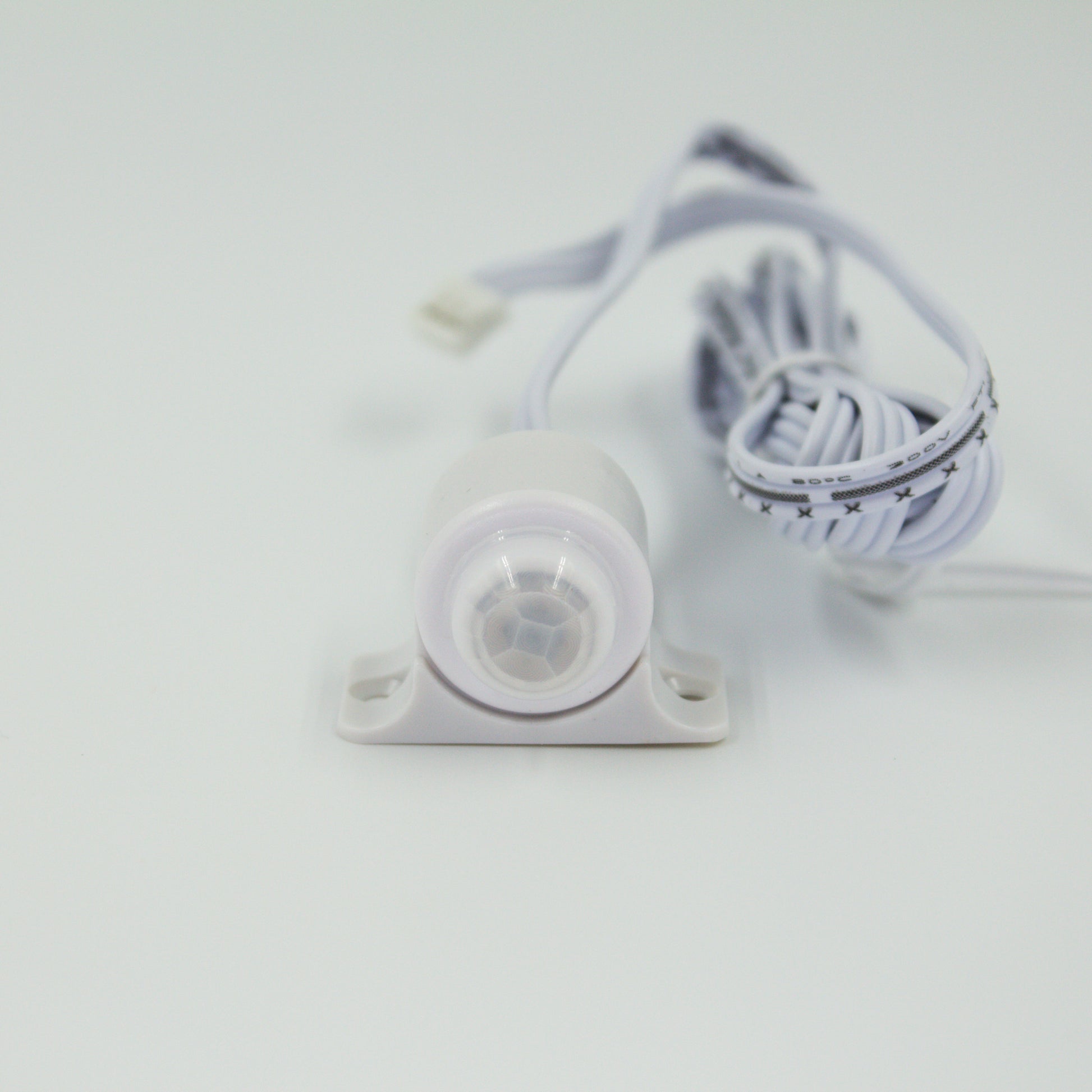

Application: Recessed / Surface mount
Compatible with single colour LED strip or downlight.
Recess depth: 11mm.
Recess diameter: 14mm.
Power: 12V (48W) or 24V (96W).
Finish/Colour: White.
Material: PC.
IP20, non-waterproof
Materials and care
Materials and care
Materials and care
1. All TGTECH LEDS are tested and checked prior to dispatch, however always double check and test on site prior to installation.
2. LED ribbon is fragile, take care during transport and installation to avoid failure. If flexible LED ribbon not handled with care on installation the solder joints between sections can be compromised and cause immediate or prolonged failure.
3. Do not shake out the roll to straighten, bend excessively or stand on, long lengths should be handled by two persons while installing. Bending or shaping beyond format supplied is to be avoided at all times.
Note: once product has been secured using the supplied adhesive tape it cannot be removed without causing irreversible damage to the LED ribbon.
Do not remove protective backing until certain installation is final.
