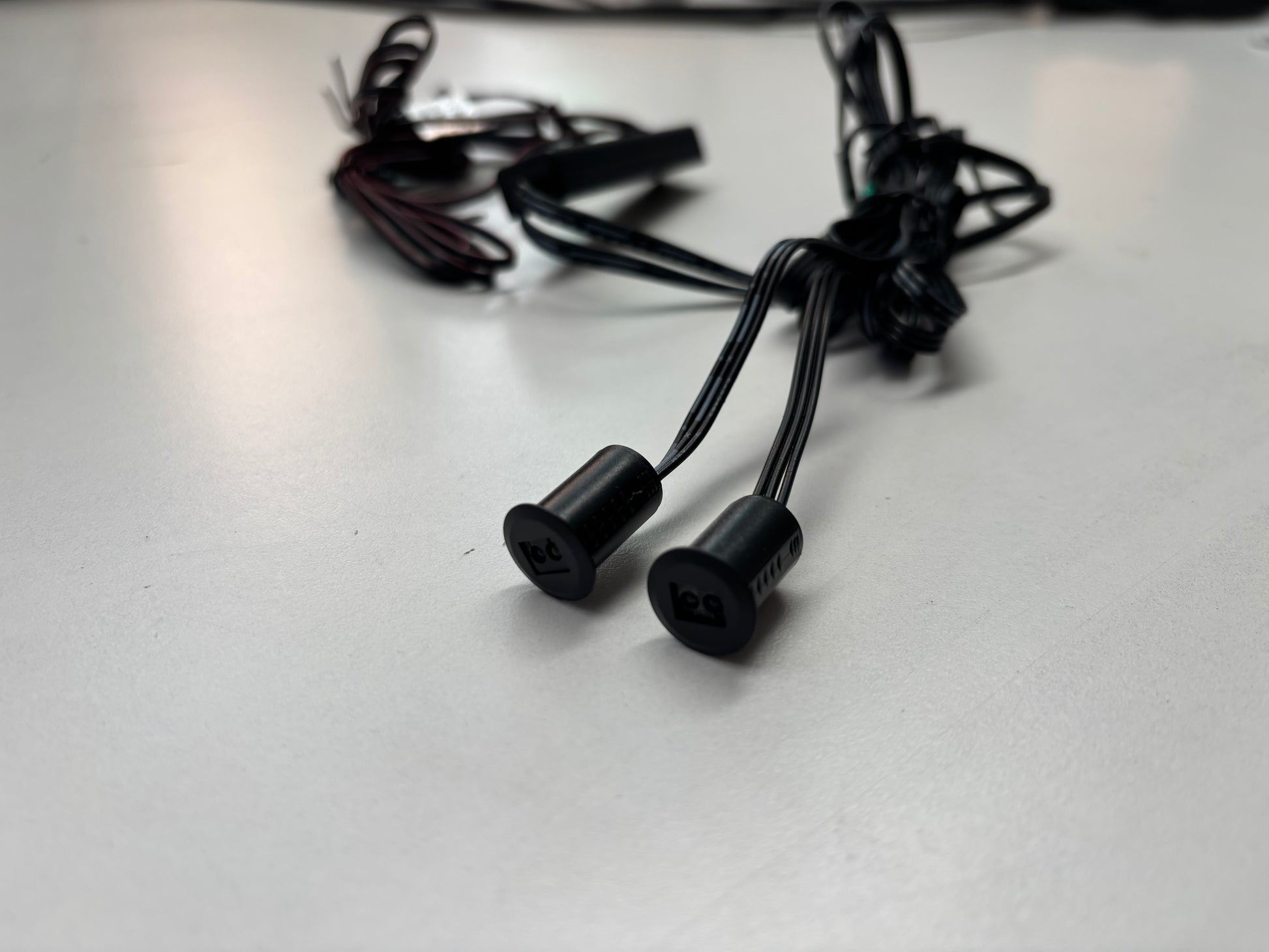

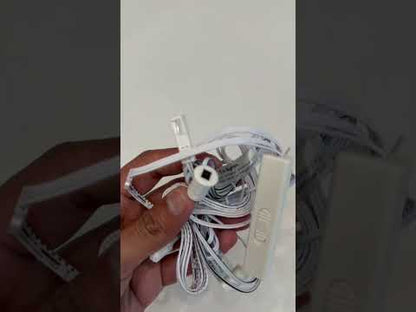

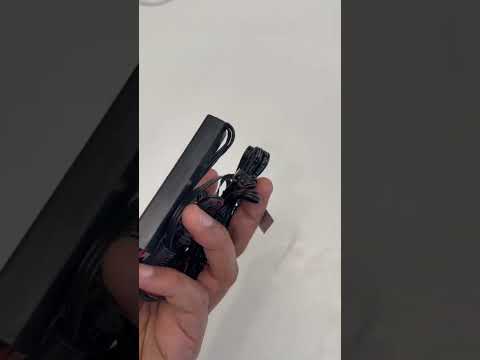

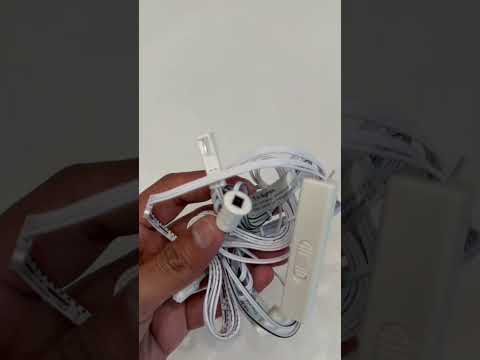

Recessed Double Door/Hand Sensor
Recessed Double Door/Hand Sensor

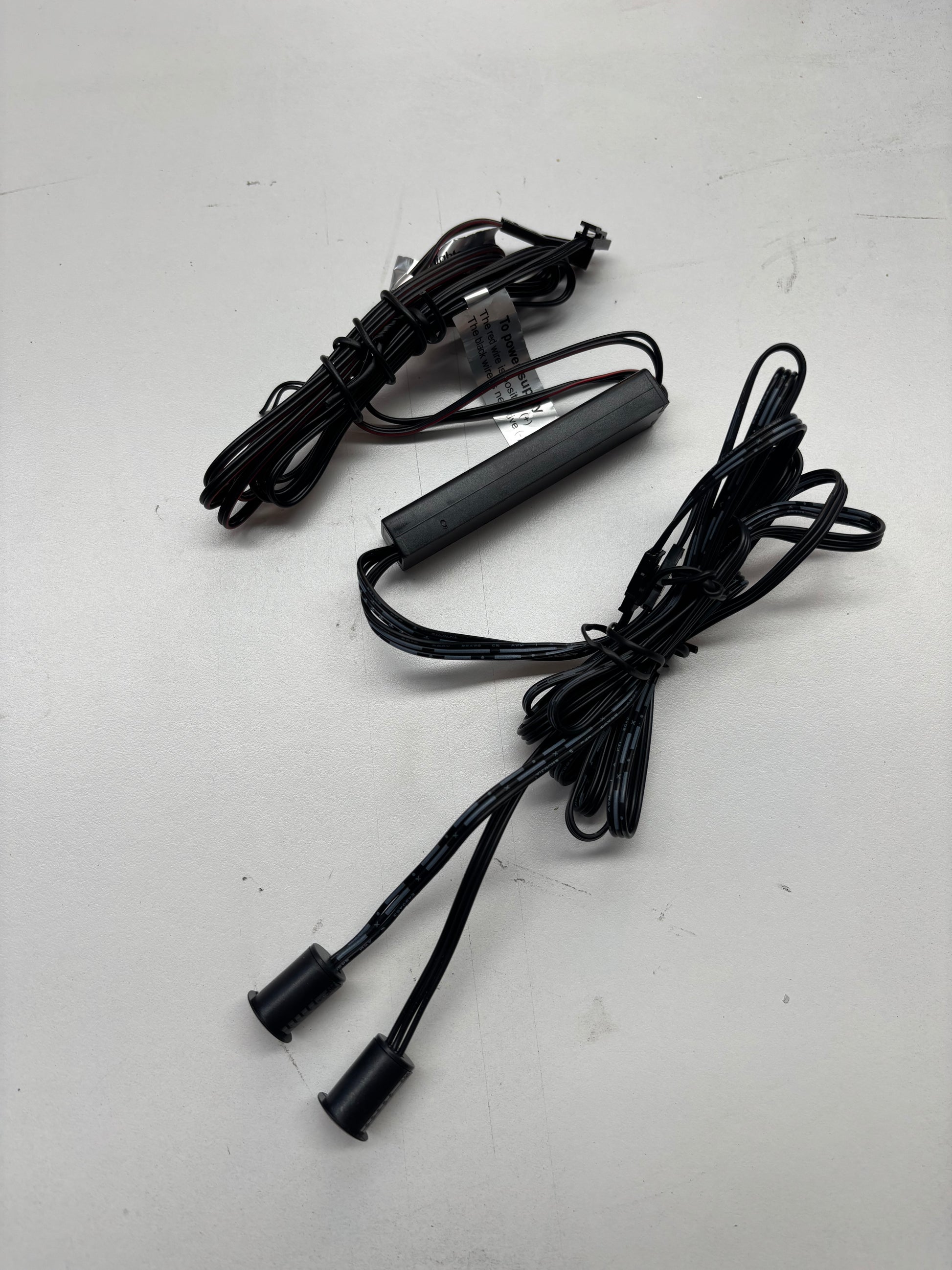

SKU:RDD-Sensor-BK

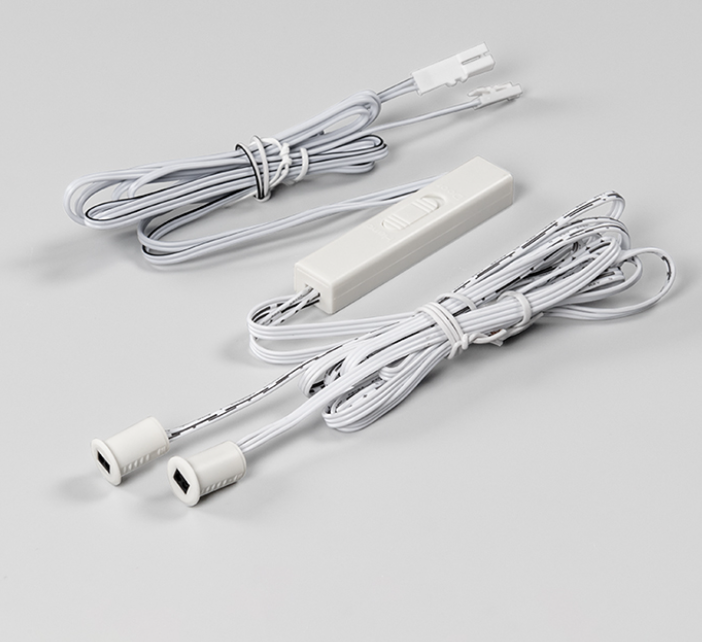

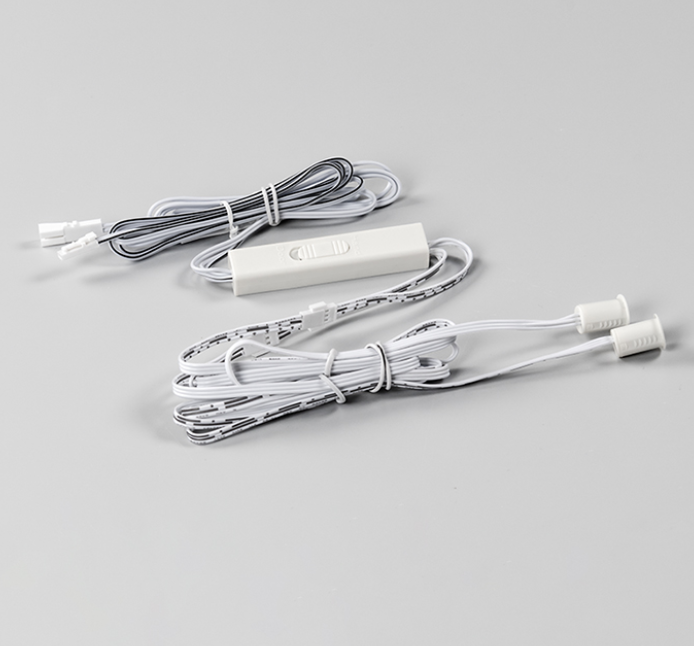

Infared door sensor and hand sensor switch combined. switch between the two.
- Detector outside dimension: 14x18mm
- Not dimmable

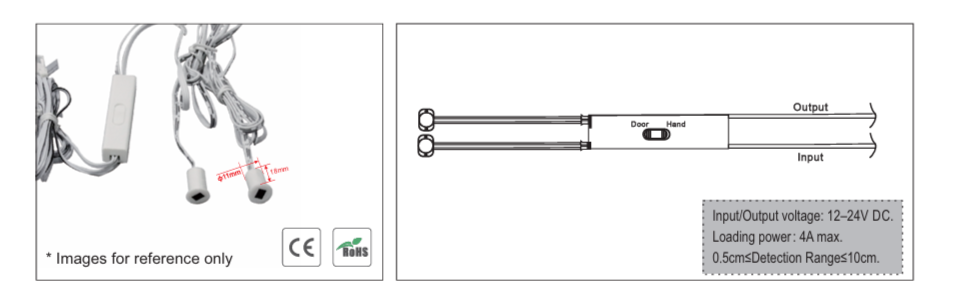

- Input Voltage 12-24VDC
- Current: 4A max
- Power 48w for 12v / and 96w for 24v
- Detection range 10cm

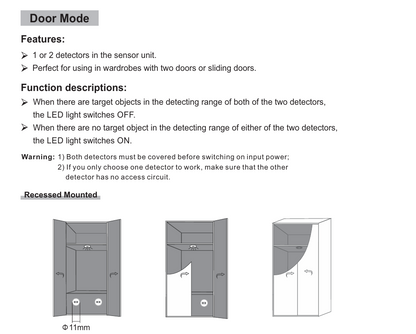

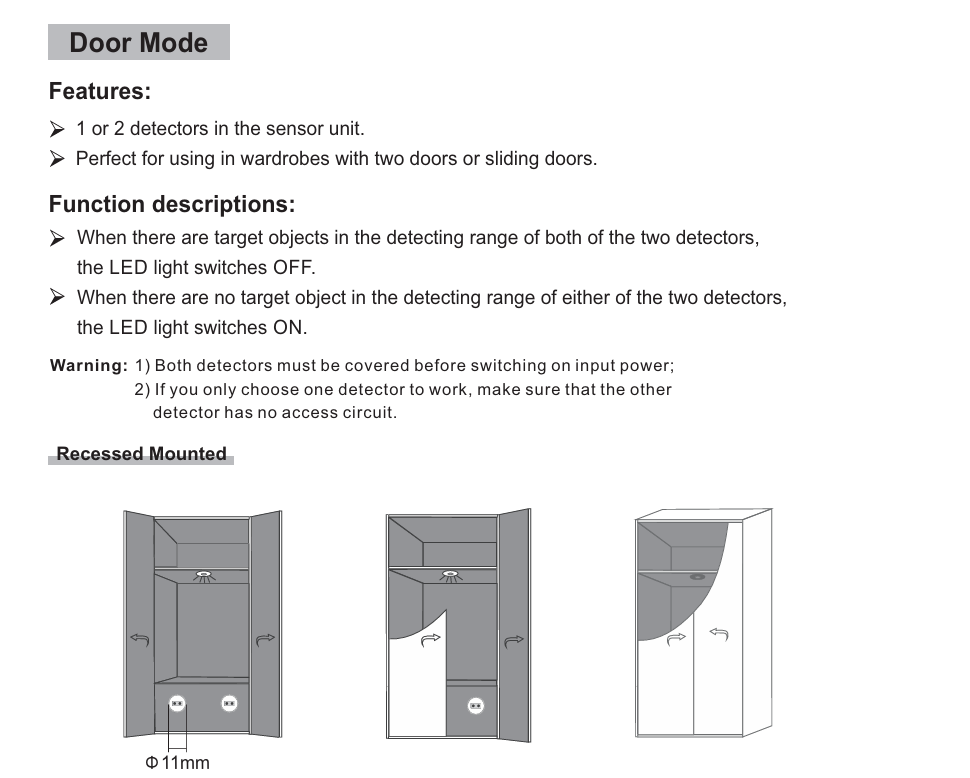

- Automatically switch ON/OFF when open/close door

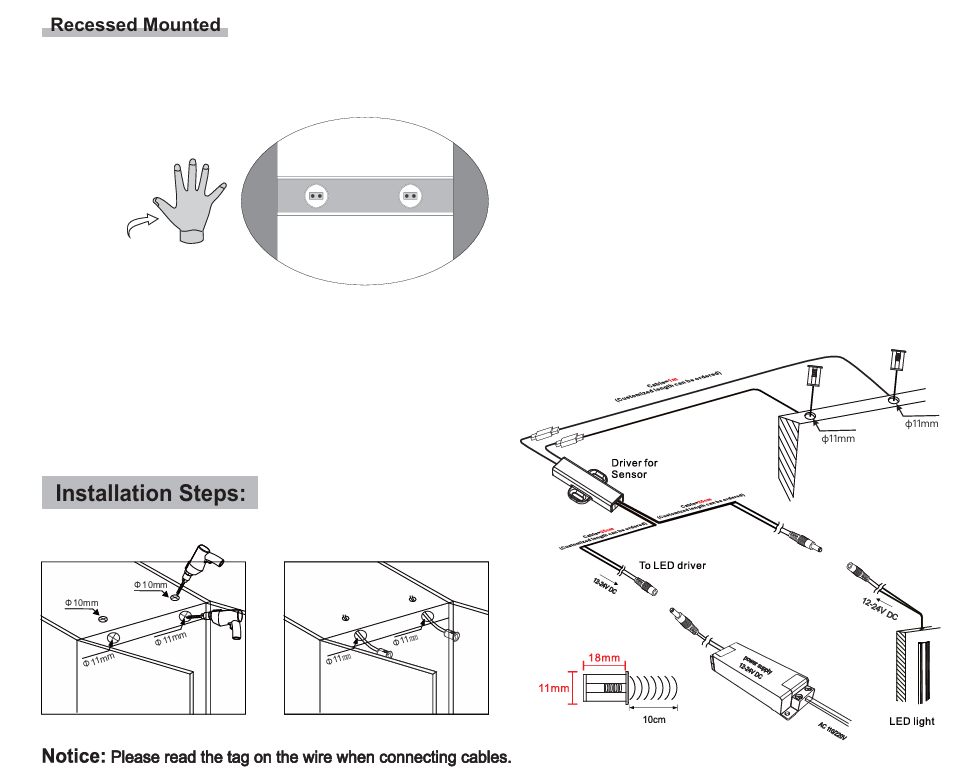

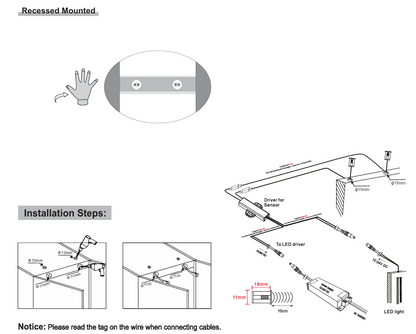

- Automatically switch ON/OFF when the hand pass over
- Input and output cable 1m long
- Sensor detector cable length 1m long
Materials and care
Materials and care
Materials and care
1. All TGTECH LEDS are tested and checked prior to dispatch, however always double check and test on site prior to installation.
2. LED ribbon is fragile, take care during transport and installation to avoid failure. If flexible LED ribbon not handled with care on installation the solder joints between sections can be compromised and cause immediate or prolonged failure.
3. Do not shake out the roll to straighten, bend excessively or stand on, long lengths should be handled by two persons while installing. Bending or shaping beyond format supplied is to be avoided at all times.
Note: once product has been secured using the supplied adhesive tape it cannot be removed without causing irreversible damage to the LED ribbon.
Do not remove protective backing until certain installation is final.
