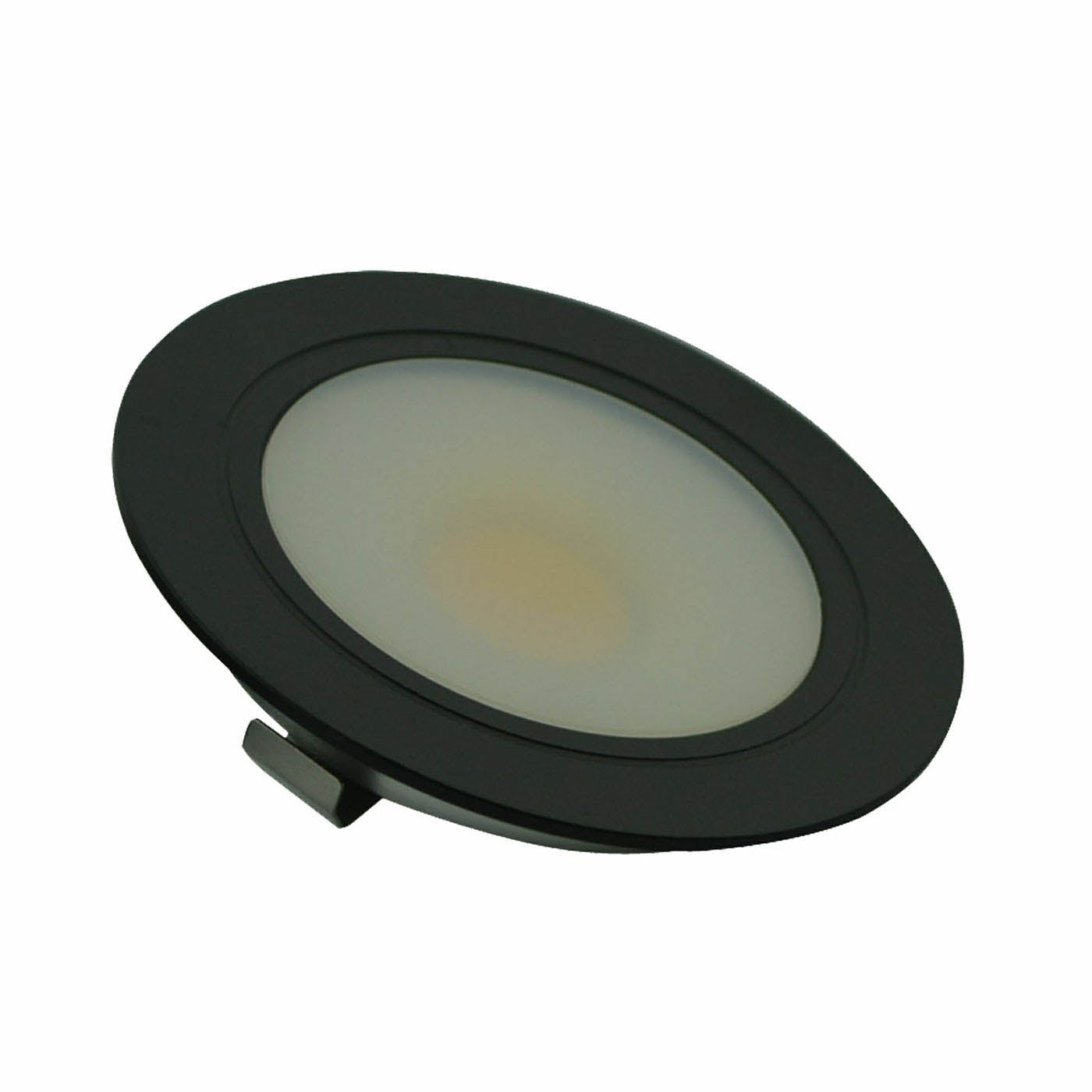

COB Cabinet Downlight 12V

COB Cabinet Downlight 12V

DL2088BK-CW-12V-1

Color: Black
Light temperature

Features:

  • LED type: 1pc COB technology with high output.
  • Material: Aluminium, PC.

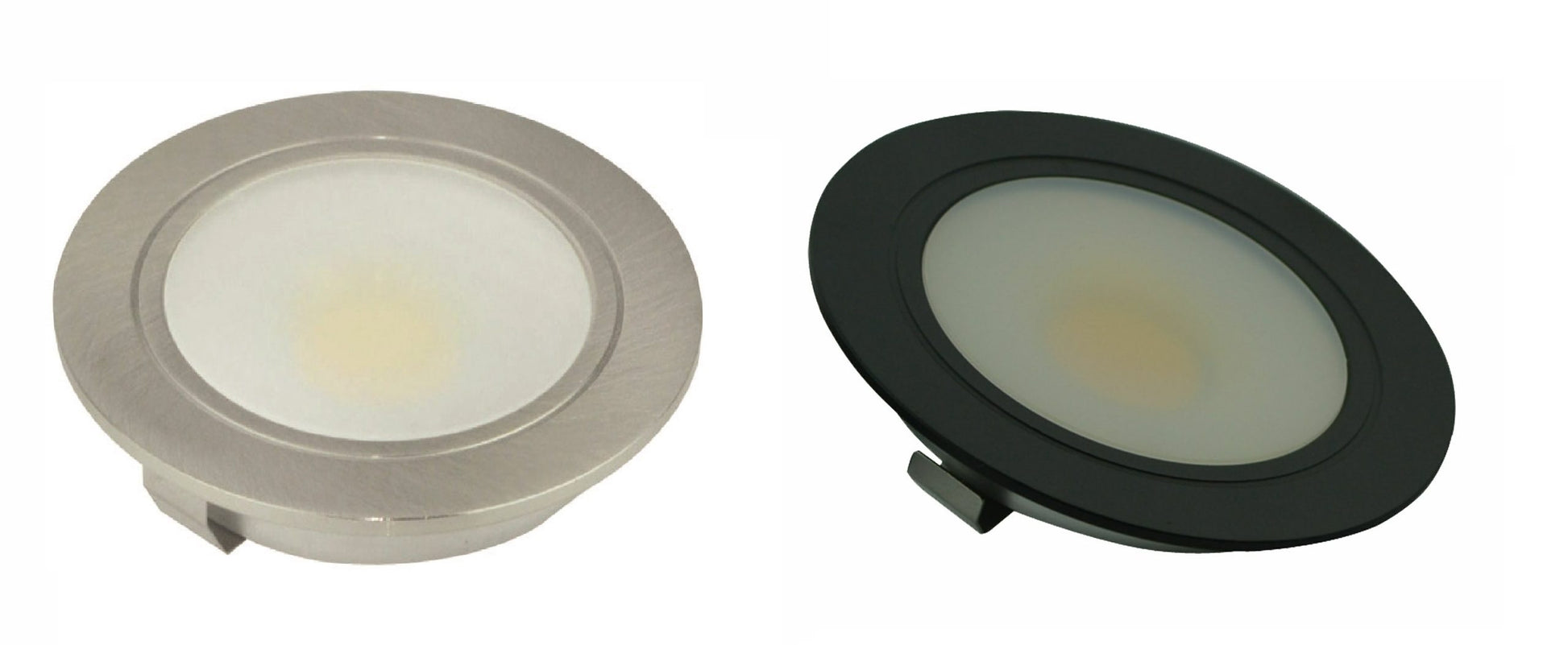

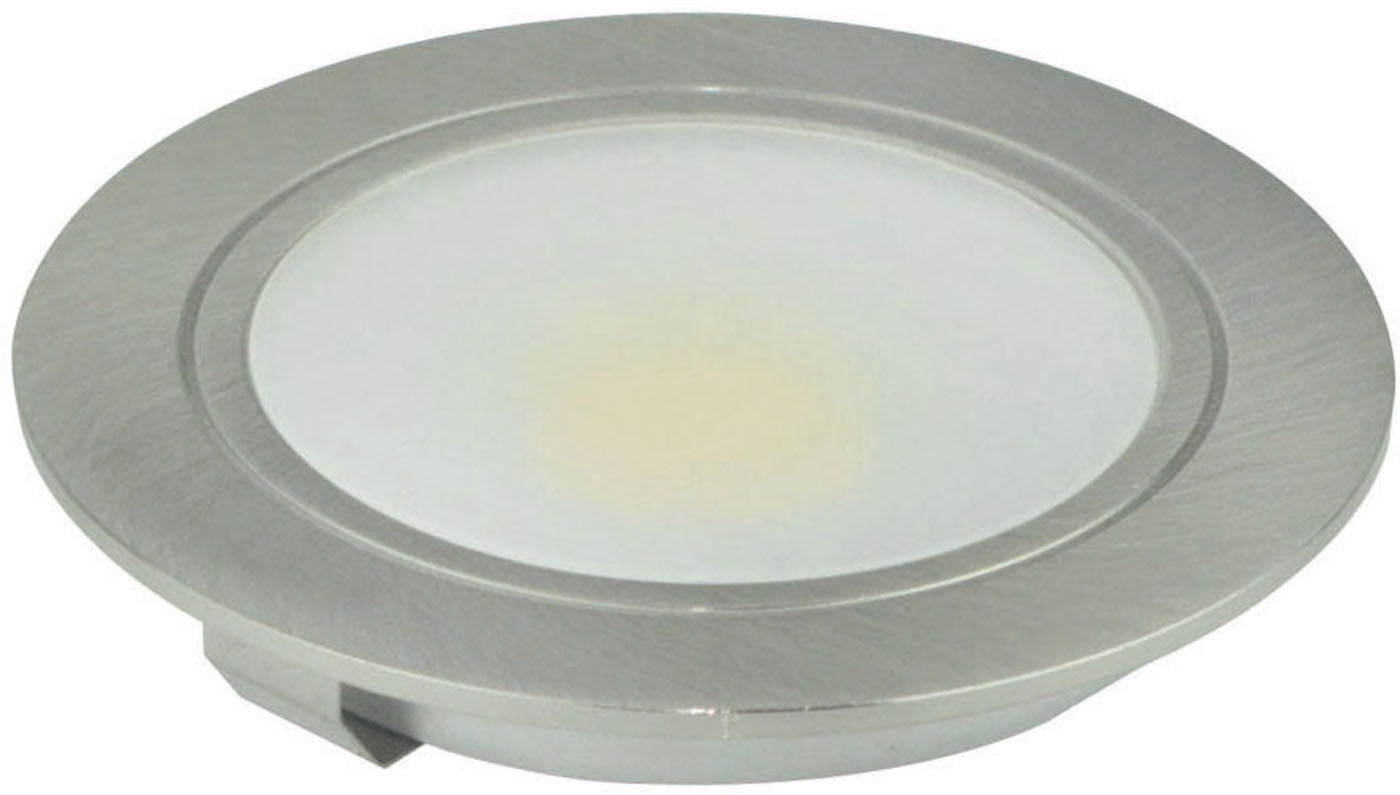

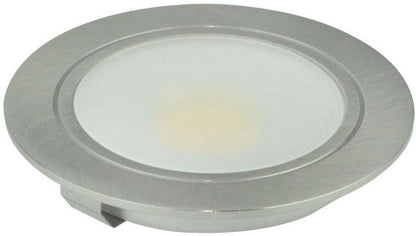

  • Finish/Colour: Silver, Black.

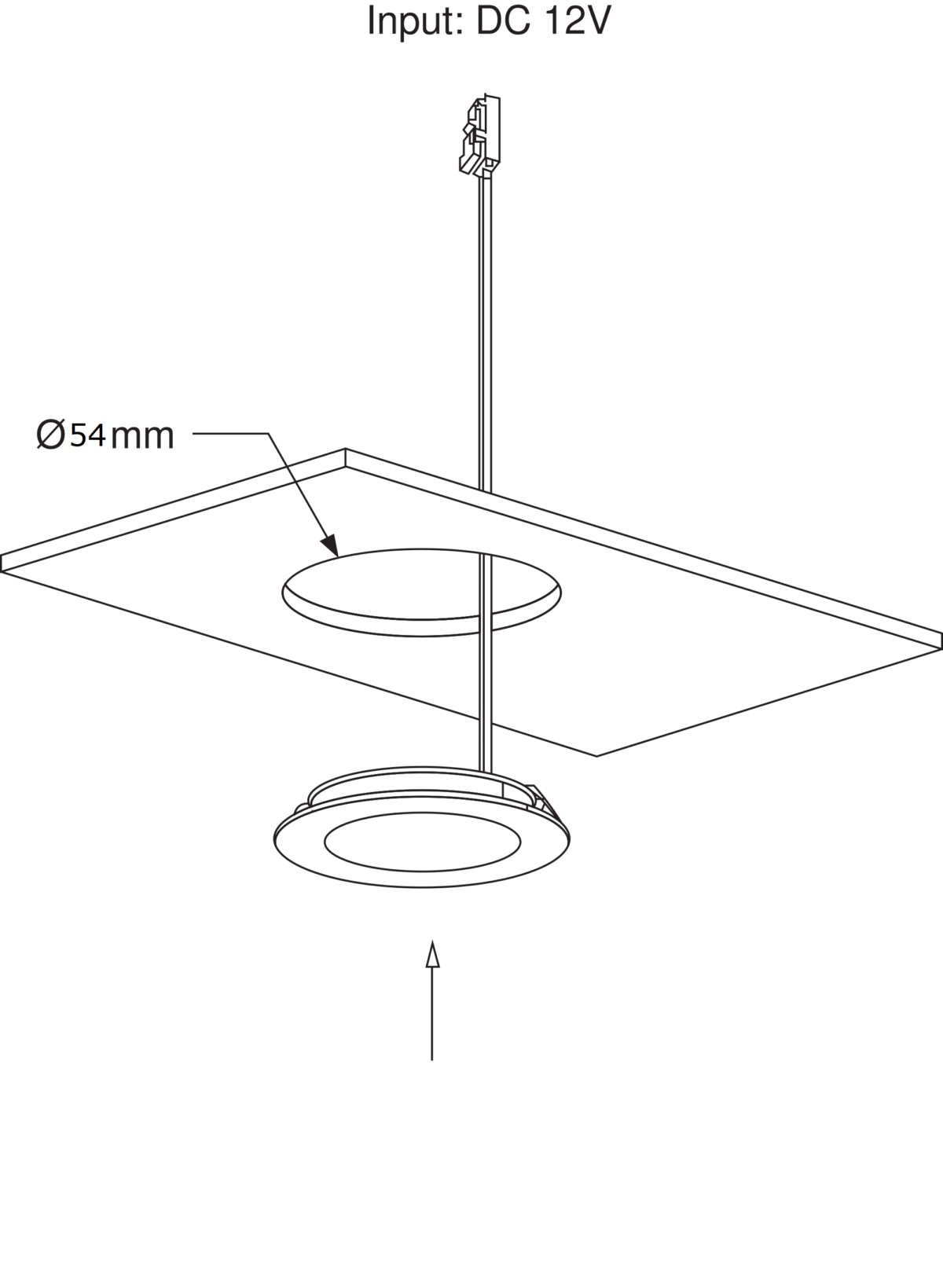

  • Cutout hole size 54mm.

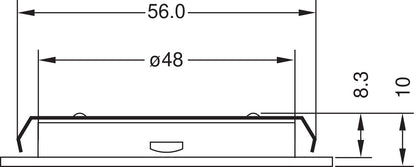

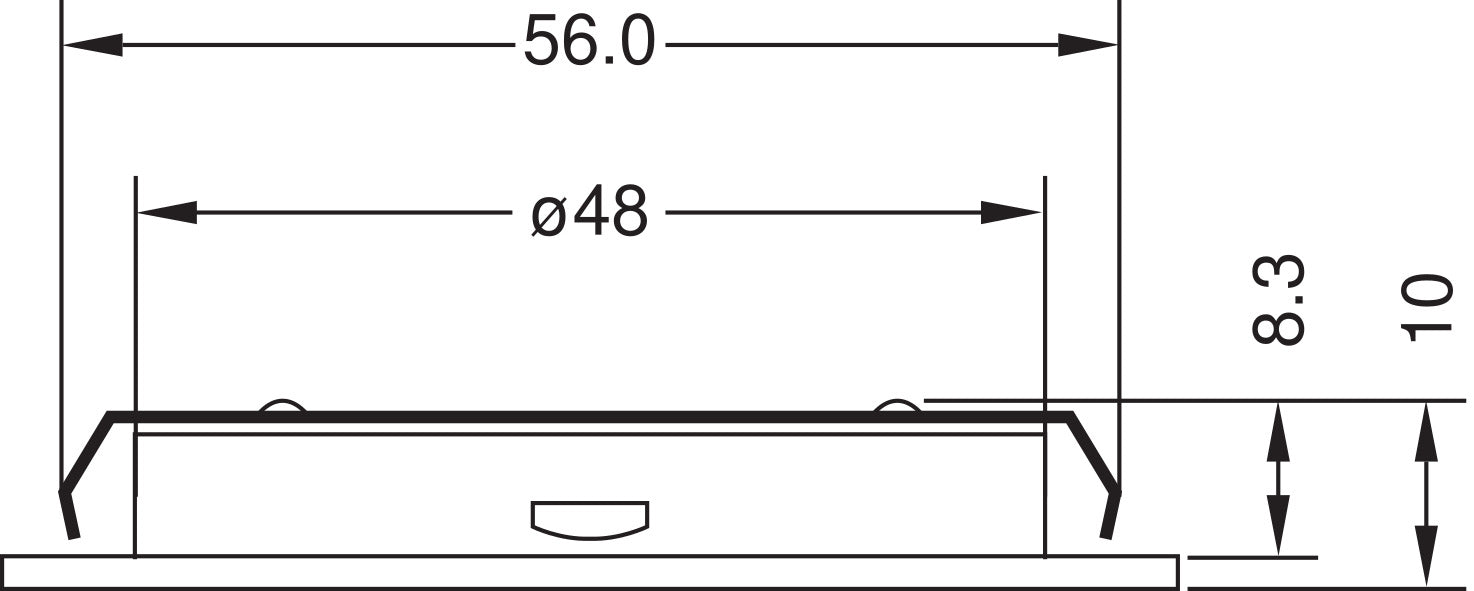

  • Dimensions: 62mmØ x 10mmH.
  • CRI 80.
  • LED beam angle 120°.
  • Long life span LED light, more than 50,000 hours+.
  • Operating temperature -20-50°C.
  • Switchable and/or dimmable by using single colour controller, sensor switch or Wi-Fi.
  • IP20, non-waterproof

Recessed downlight with classic round design.

12V.

Power: 3 Watts

Downlight – DL2088 Single Colour LED COB Cabinet Downlight.

Materials and care

Materials and care

1. All TGTECH LEDS are tested and checked prior to dispatch, however always double check and test on site prior to installation.
2. LED ribbon is fragile, take care during transport and installation to avoid failure. If flexible LED ribbon not handled with care on installation the solder joints between sections can be compromised and cause immediate or prolonged failure.
3. Do not shake out the roll to straighten, bend excessively or stand on, long lengths should be handled by two persons while installing. Bending or shaping beyond format supplied is to be avoided at all times.
Note: once product has been secured using the supplied adhesive tape it cannot be removed without causing irreversible damage to the LED ribbon.
Do not remove protective backing until certain installation is final.
