WT5 Controller
WT5 Controller
SKU:WT5

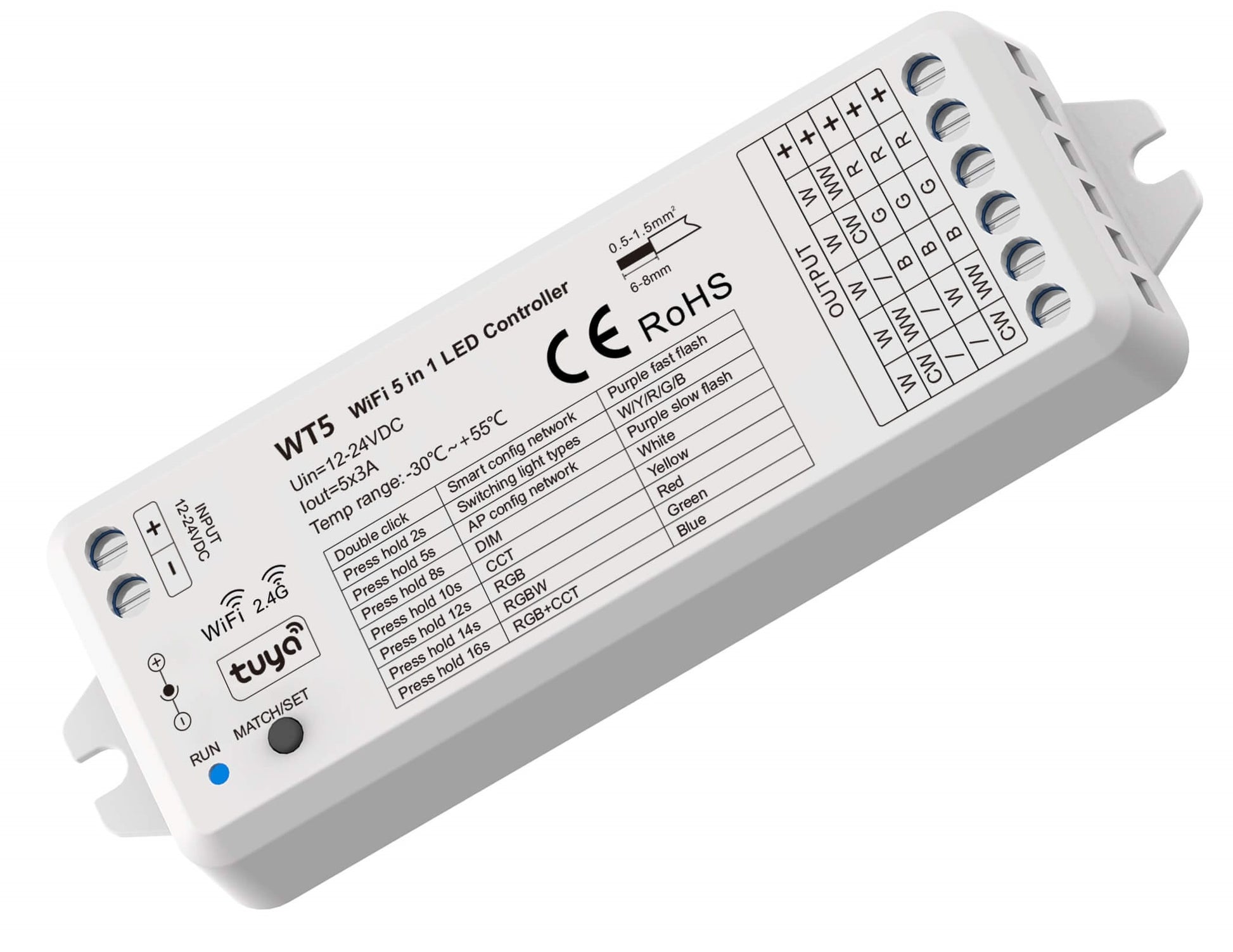

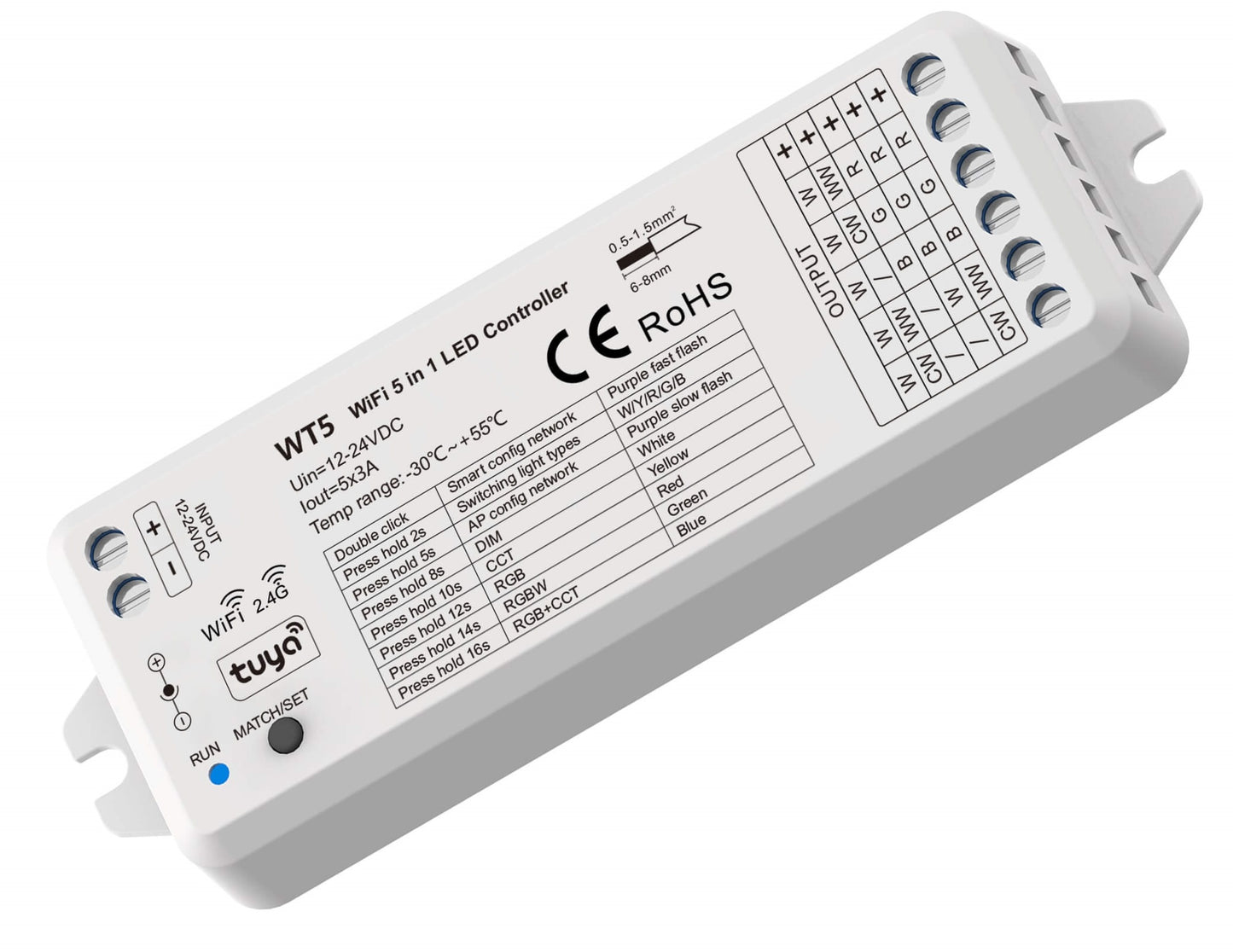

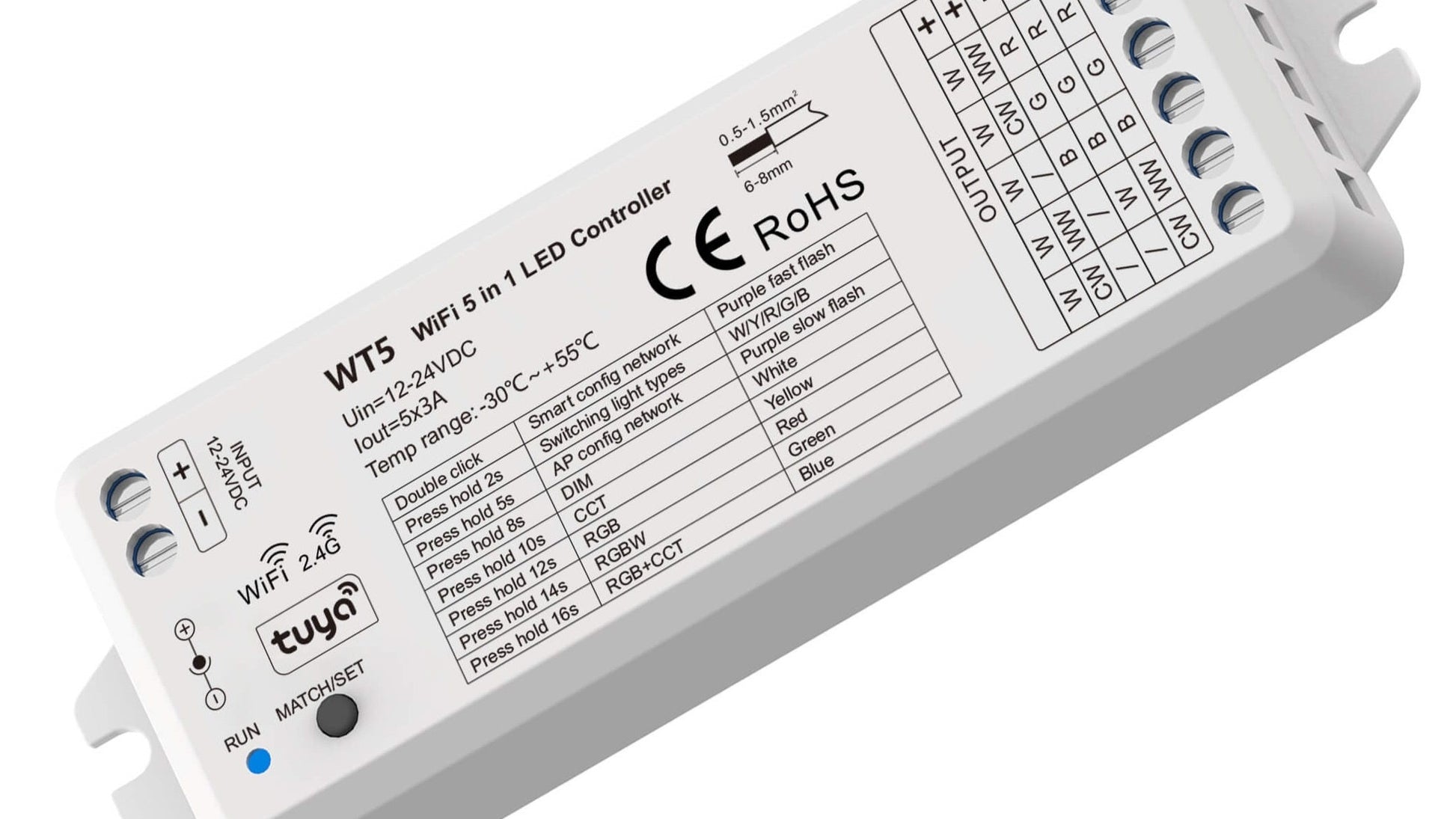

- Controller Receiver – WT5 LED Controller.
- Wi-Fi and/or RF mini size 5-in-1 LED controller, compatible with a variety of remotes and touch panels.
- Wi-Fi control through Tuya Smart app with many interfaces and features.
- Voice control compatible with Google Home and Amazon Echo using Tuya Smart app gateway.
- Can be used to switch, dim and control single colour, dual white (CCT), RGB, RGBW or RGBW+WW (CCT) LED’s.
- Multiple zones can be controlled separately or synchronously.
- Smooth dimming from 0.1% to 100% without any flickering.
- Light on/off fade time 3s selectable.
- Voltage: 12V or 24V.
- Output current: Max 5A/CH, total max 15A.
- Easily matched to device with match button.
- IP20, non-waterproof
Materials and care
Materials and care
Materials and care
1. All TGTECH LEDS are tested and checked prior to dispatch, however always double check and test on site prior to installation.
2. LED ribbon is fragile, take care during transport and installation to avoid failure. If flexible LED ribbon not handled with care on installation the solder joints between sections can be compromised and cause immediate or prolonged failure.
3. Do not shake out the roll to straighten, bend excessively or stand on, long lengths should be handled by two persons while installing. Bending or shaping beyond format supplied is to be avoided at all times.
Note: once product has been secured using the supplied adhesive tape it cannot be removed without causing irreversible damage to the LED ribbon.
Do not remove protective backing until certain installation is final.
